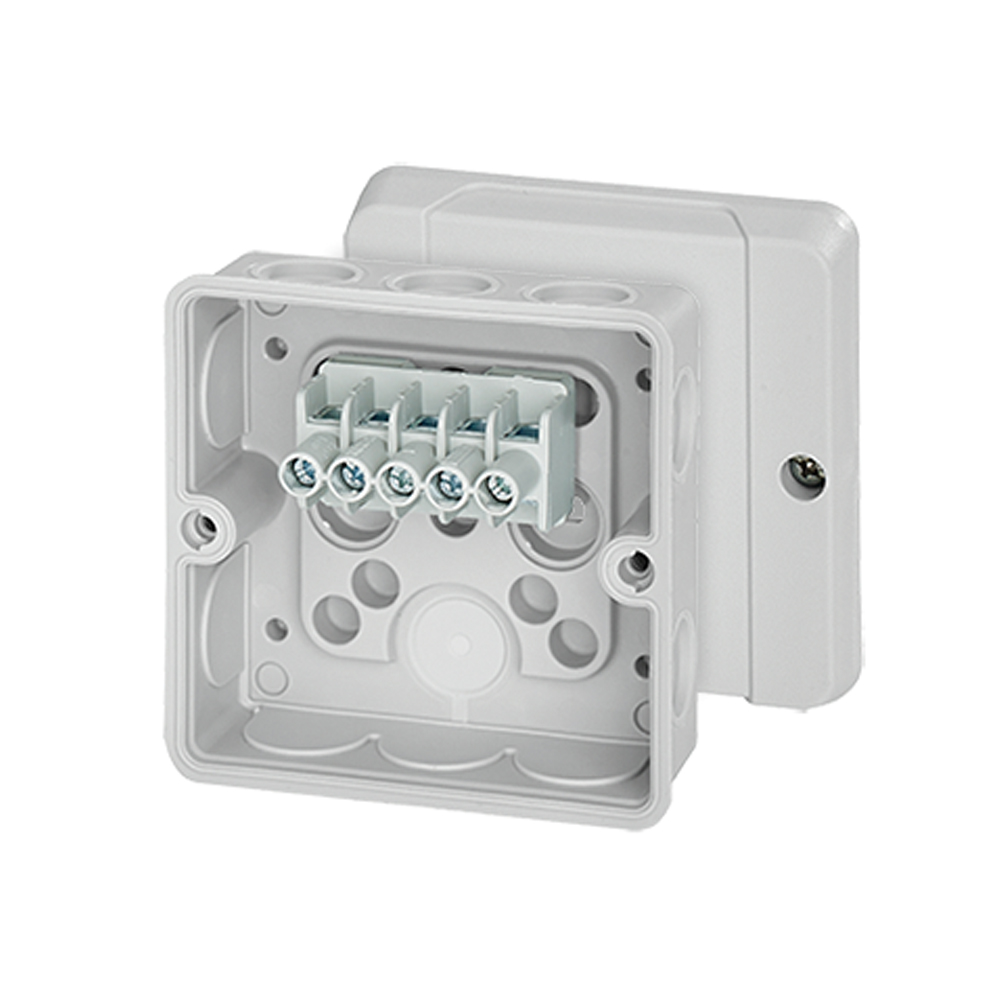

Hensel ENYCASE Thermoplastic Cable Junction Box 1.5-2.5 mm | DE ENYCASE | DE9325

Sealcon #: DE9325
Size: DE ENYCASE
Material: DE 88 x 88 x 50 mm
Hensel #: DE 9325
Cover screws and mounting screws included.

1.5-2.5 mm², Cu 3~
With terminals
5-pole per pole 6 x 1.5 mm² sol, 4 x 2.5 mm² sol, 3 x 4 mm² sol
11 elastic membranes, closed cable entries, sealing range Ø 6-16 mm
With one cable entry in the bottom, sealing range Ø 6-16 mm
With cable retention (2 pc.) for cable tie up to 6.5 mm width

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page
  • Rated insulation voltage Ui = 690 V a.c./d.c.
    Material PP (polypropylene)
    Degree of protection IP 55
    Width 88 mm
    Height 88 mm
    Depth 50 mm
    Weight 0,12 kg
    Tightening torque for terminal 1.2 Nm
    In accordance with IEC 60670-22
    Impact
    IK07 (2 Joule)
    Fire Resistance
    Glow wire test IEC 60695-2-11: 750 °C
