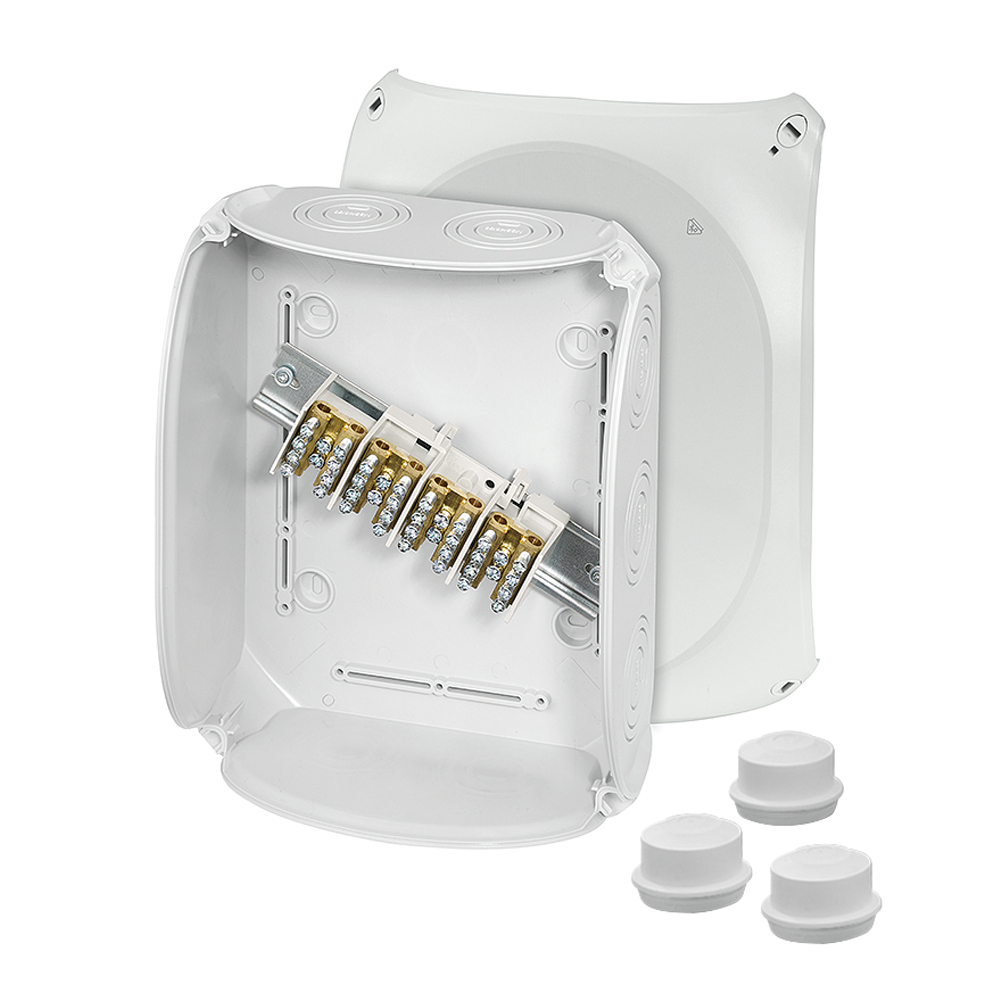

Hensel ENYCASE Thermoplastic Cable Junction Box 6-25 mm | DK ENYCASE S | DK2524S

Sealcon #: DK2524S
Material: DK 255 x 205 x 112 mm
Hensel #: DK 2524 S
Cover screws and mounting screws included.

6-25 mm², Cu
With main line branch terminals for copper conductors
4-pole per pole terminals for incoming cables: 10-25 mm² r, 6-16 mm² f, with end ferrule, terminals for outgoing cables: 6-16 mm² r, 4-10 mm² with end ferrule
Lid fasteners sealable without accessories
Included cable entry: 3 x ESM 40, sealing range Ø 17-30 mm
With two cable entries M 32 from the rear side
External brackets for wall fixing included

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Catalog Page
  • Rated insulation voltage Ui = 400 V a.c.
    Rated current: 80 A
    Material PC (Polycarbonate)
    Degree of protection IP 55
    Degree of protection IP 66
    Width 255 mm
    Height 205 mm
    Depth 112 mm
    Weight 1,056 kg
    Tightening torque for terminal 3,0 Nm Zuleitungsklemmen
    3,0 Nm Ableitungsklemmen
    IK07 (2 Joule)
    Fire Resistance
    Glow wire test IEC 60695-2-11: 750 °C
