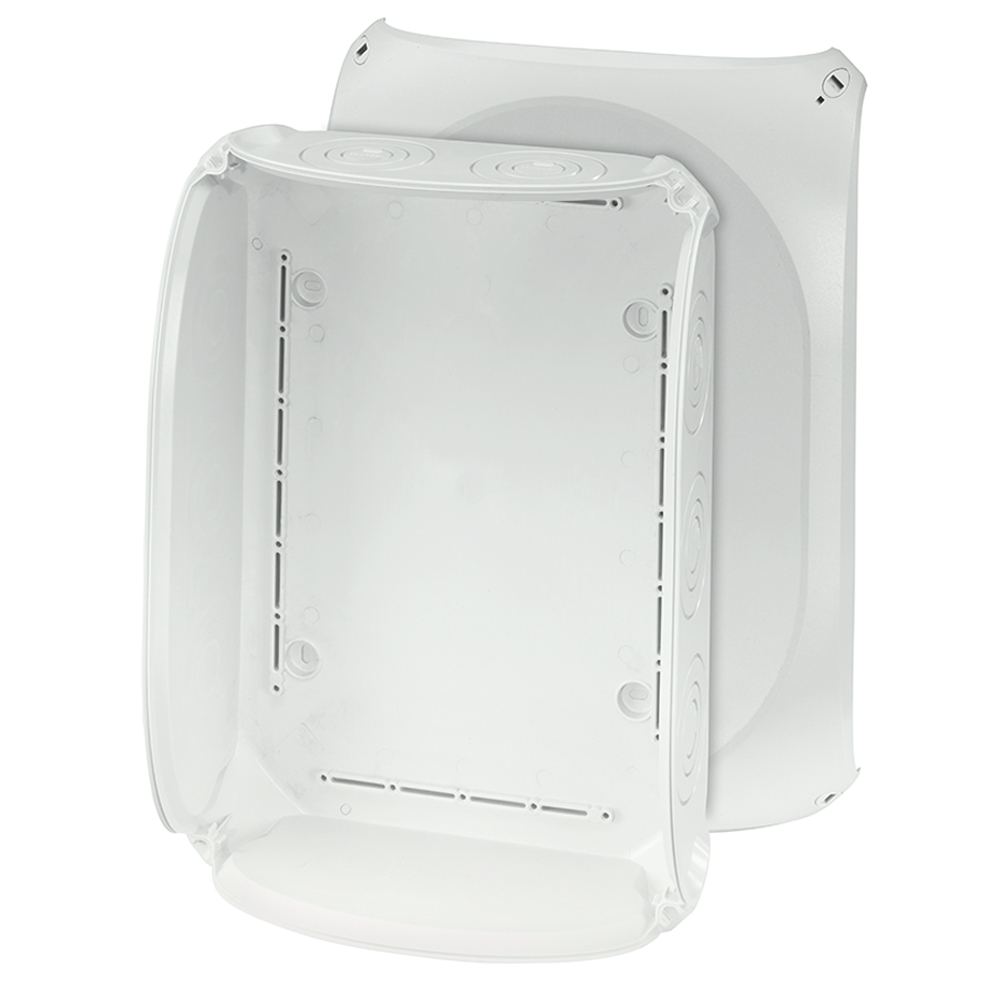

Sealcon #: DK5000G
Size: DK ENYCASE G - without Terminals
Material: DK 355 x 225 x 122 mm
Hensel #: DK 5000 G
Cover screws and mounting screws included.
Without terminals
With two cable entries M 32 from the rear side
Cable entries via knockouts
Lid fasteners sealable without accessories
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Material PC (Polycarbonate)
Degree of protection IP 66
Mounting width 320 mm
Mounting height 215 mm
Max. installation depth 106 mm
Width 355 mm
Height 255 mm
Depth 122 mm
Weight 1,365 kg
In accordance with IEC 60670-22ImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750° C
VDE approval VDE (Association of German Electrical Engineers)
