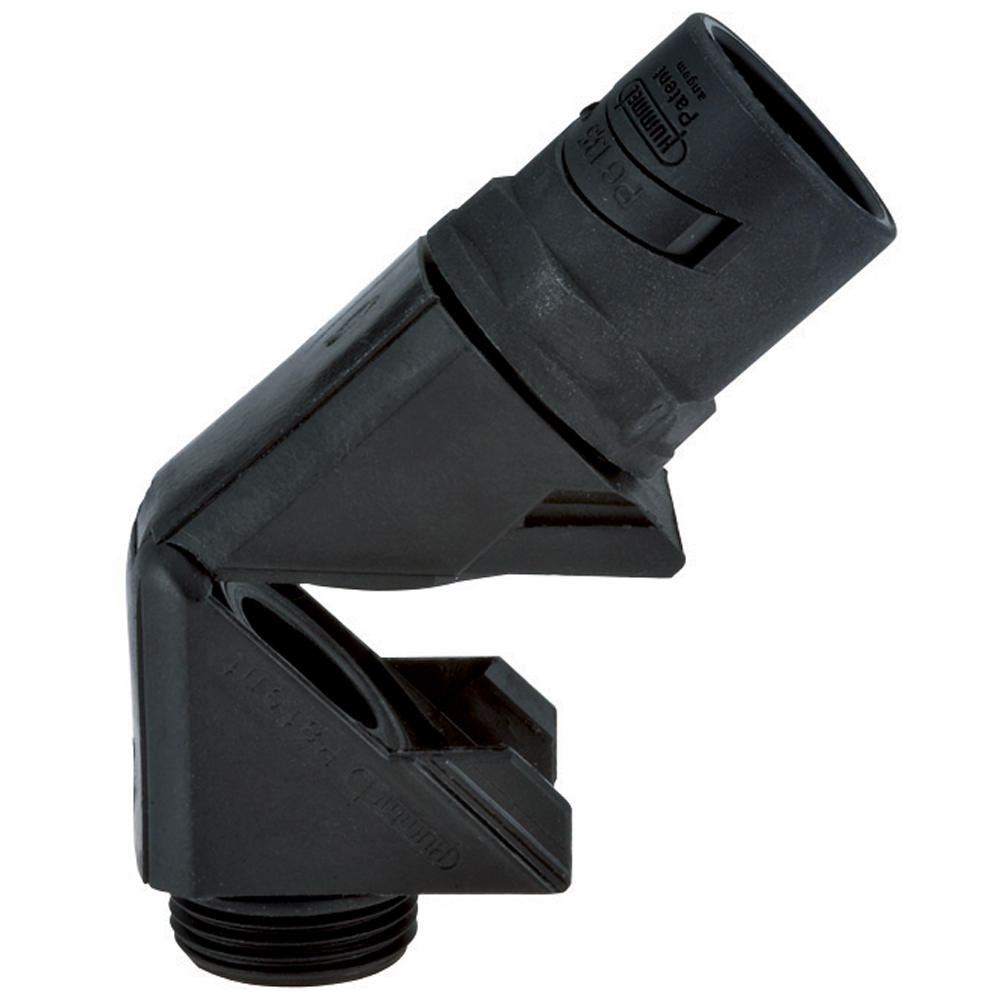

Nylon Push-In 90° Elbow w/snap close Conduit Fitting NPT | EM16NA-BK

Sealcon #: EM16NA-BK

Color: Black

Material: Nylon

Hummel: SM-W

Hummel #: 1.513.1217.70

Fits to Nylon Conduit DN 17

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

D	1.18" (30 mm)
Roll Length	164

PDF DOWNLOADS

Features
- Combines the unique 90° Elbow and Straight Push-in Fitting for easy installation of wires into an Elbow Fitting
- The “straight” Elbow is snapped together after the wires have been installed, resulting in a liquid tight 90° Elbow
- SM & EM Fittings feature a Locking Ridge to hold Conduit Tubing in place
- They also have an O-Ring groove for optional O-Ring installation
- O-Ring Included on Elbow Fittings
Pressure Rating: IP 54 - NEMA 2 (with O-Ring), IP 65 (with fixed conduit mounting) Materials:Fittings: Black NylonO-Ring: Buna-N Operating Temperature:- 20°C to 80°C (- 4°F to 176°F) Approvals:German Lloyd Russian GostRoHS & Deca BDE * ORINGS INCLUDED ON ELBOWS
APPROVALS
