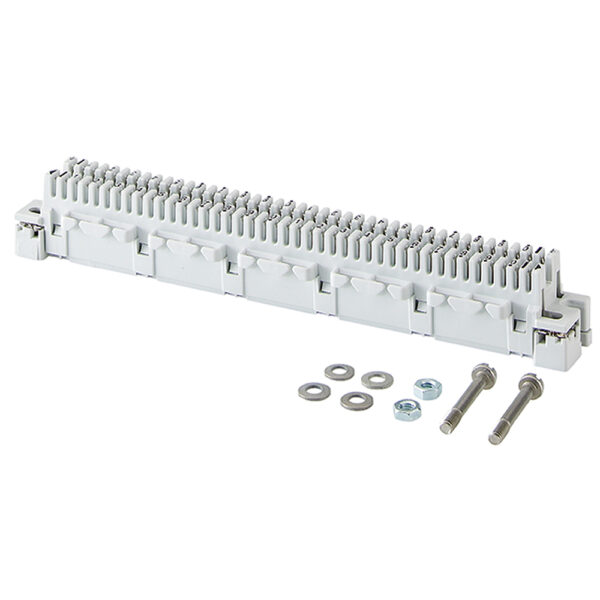

Hensel Connecting Device for Telecommunications | FK5120

Sealcon #: FK5120
Size: Hensel Accessories FK
Material: Connecting Device
Hensel #: FK 5120

Connecting device for telecommunications
Screwless for 20 pairs
LSA connection technology, solder and screwless, no insulation removal is required
For installation on mounting brackets in FK 5000
Suitable for a solid conductor with diameter of 0.4 up to 0.8 mm or for two identical solid conductors with diameters of 0.4 up to 0.65 mm
Outer diameter of insulation 0.7 up to 1.6 mm
With fixing screws

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Catalog Page
  • Rated insulation voltage Ui = 100 V a.c.
    Ui = 125 V d.c.
    Rated current: Solid conductor up to Ø 0.6 mm max. 2.1 A
    Solid conductor Ø 0.8 mm max. 5.0 A
    Height 26 mm
    Width 178 mm
    Depth 22 mm
    Weight 0,097 kg
