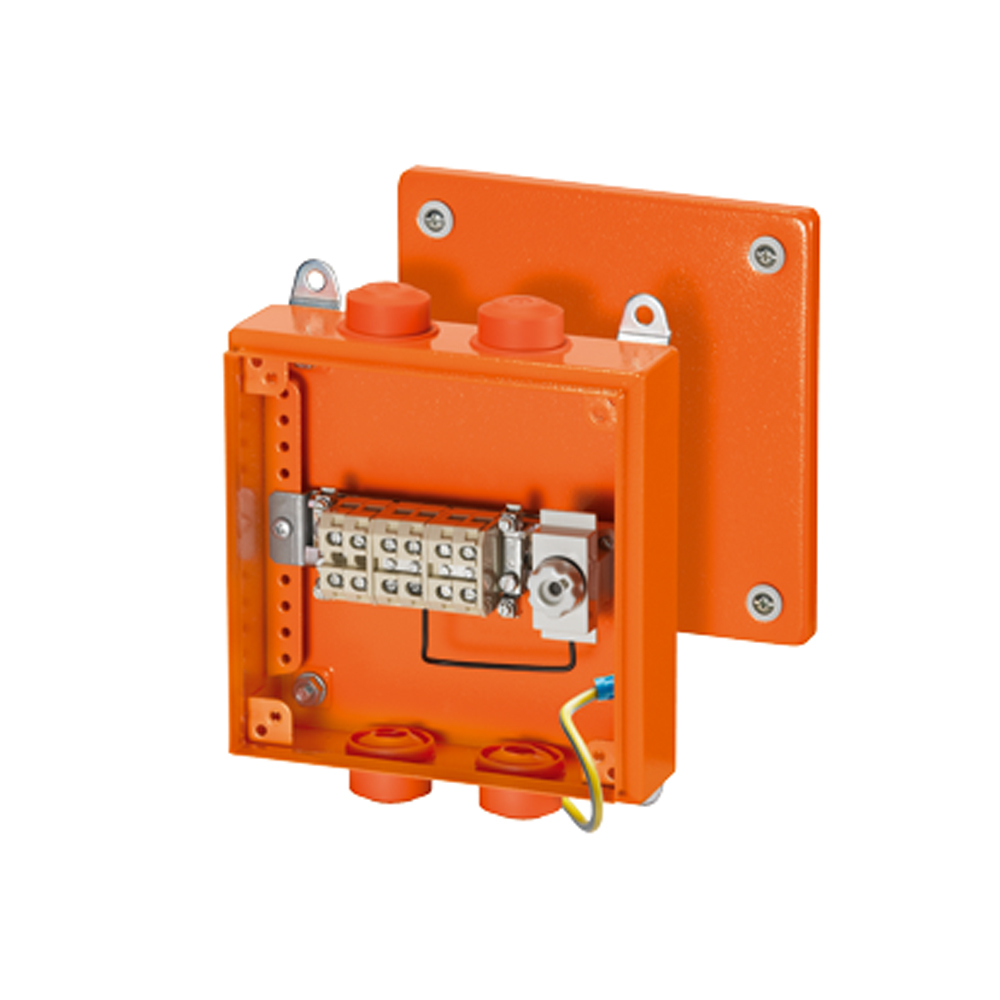

Cable junction box 1.5-10 mm², Cu
Cable junction box with fused outgoing unit
D 01 neozed fuse base
5-pole terminal with 2 connecting terminals, 2 junction terminals and 2 PE terminals, each 1.5-10 mm² sol
Terminal block made from ceramic with resistance to high temperatures
Mounted grommets 4 EDKF 40,sealing range Ø 11-30 mm, closed
Intrinsic fire resistance E 30 in accordance with DIN 4102 part 12
The use of this equipment requires the approval from the building and regulatory authorities for the individual case
Tested with cable manufacturers Dätwyler and Nexans for the intrinsic fire resistance E30
Mounted using exterior wall fixings,
Bore hole 8.2 mm(for dowels refer to technical data)
For normal environment and protected outdoor
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Rated insulation voltage Ui = 400 V a.c.
Rated current: 40 A
Material Sheet steel, powder-coated
Tightening torque for terminal 2.0 -2.4 Nm
Degree of protection IP 66
Height 200 mm
Width 200 mm
Depth 80 mm
Weight 2,65 kg
In accordance with intrinsic fire resistance E 30 in accordance with DIN 4102 part 12Impact
IK10 (20 Joule)
