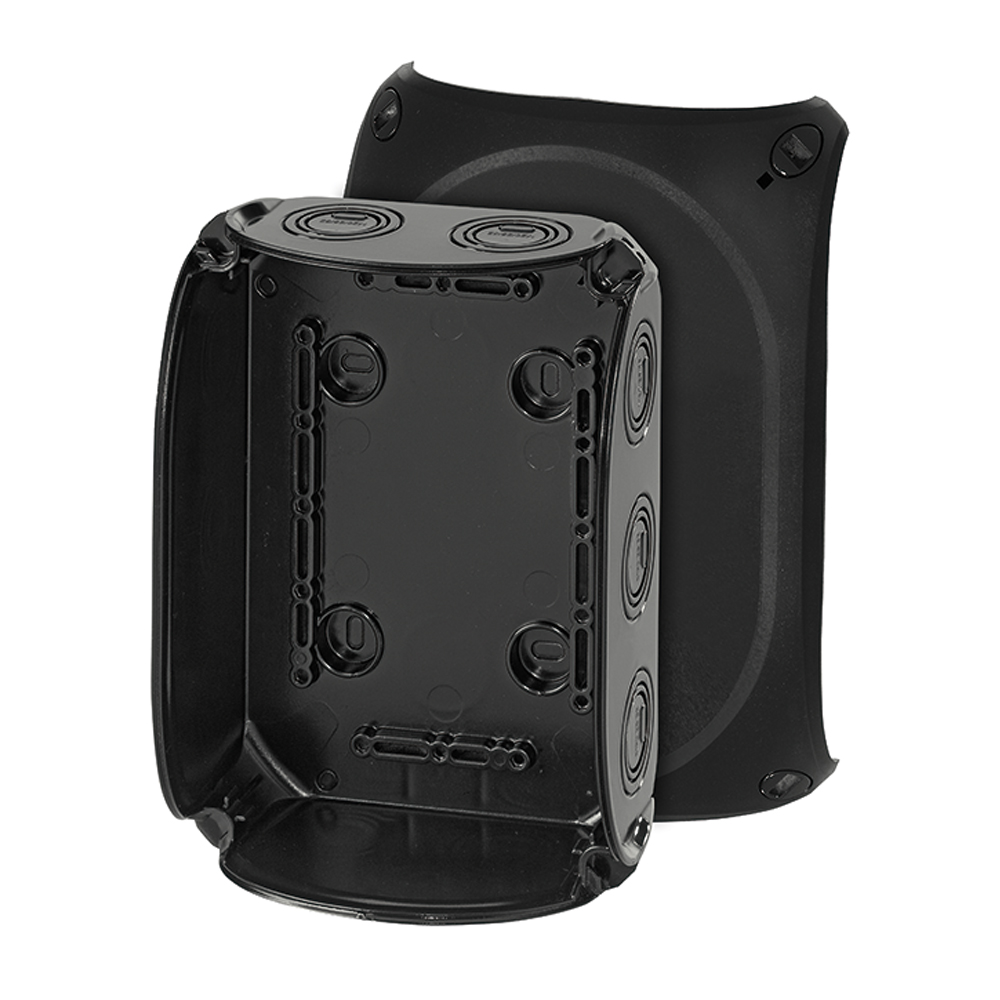

Sealcon #: KF1000B
Size: KF ENYCASE B
Material: KF 180 x 130 x 77 mm
Hensel #: KF 1000 B
Cover screws and mounting screws included.
Without terminals
With two cable entries M 25 from the rear side
Cable entries via knockouts
“Weatherproof” resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
Saltwater-proof
“Offshore applications”
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Discontinued Part, Limited Supply.
Contact Us for Quantity or Possible Alternatives.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Material PC-GFS (polycarbonate)
Degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Mounting width 150 mm
Mounting height 97 mm
Max. installation depth 62 mm
Width 180 mm
Height 130 mm
Depth 77 mm
Weight 0,255 kg
In accordance with IEC 60670-22
In accordance with DNV GL - Certificate No: TAE00000EEImpact
IK09 (10 Joule)
VDE approval VDE (Association of German Electrical Engineers)
German Lloyd
