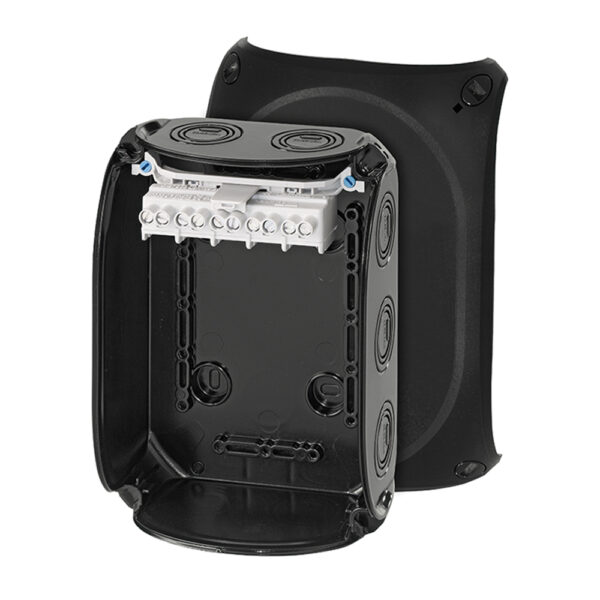

Sealcon #: KF1006B
Size: KF ENYCASE B
Material: KF 180 x 130 x 77 mm
Hensel #: KF 1006 B
Cover screws and mounting screws included.
1.5-6 mm², Cu 3~
Terminal with 2 clamping units per pole
5-pole per pole 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 2 x 10 mm² r / f
With two cable entries M 25 from the rear side
Cable entries via knockouts
“Weatherproof” resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
Saltwater-proof
“Offshore applications”
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Discontinued Part, Limited Supply.
Contact Us for Quantity or Possible Alternatives.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 40 A
Material PC-GFS (polycarbonate)
Degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Width 180 mm
Height 130 mm
Depth 77 mm
Weight 0,322 kg
Tightening torque for terminal 1.5 Nm
In accordance with IEC 60670-22
In accordance with DNV GL - Certificate No: TAE00000EEImpact
IK09 (10 Joule)
VDE approval VDE (Association of German Electrical Engineers)
German Lloyd
