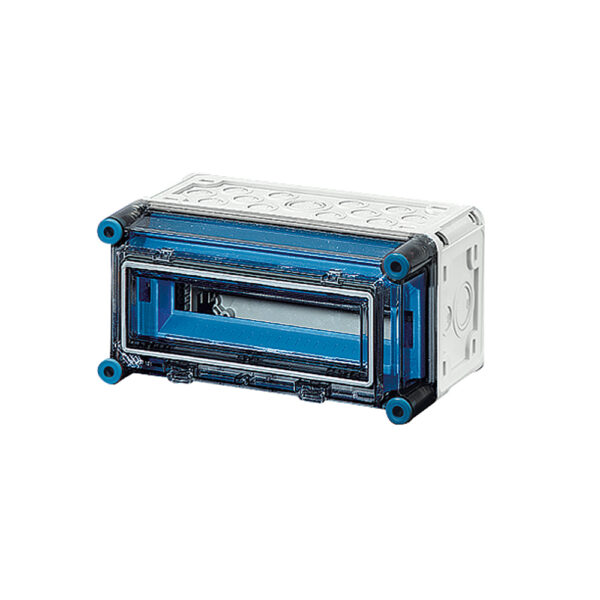

Hensel Mi Power Distribution Boards up to 630 A | Mi Circuit Breaker Box | Mi1111

Sealcon #: Mi1111
Size: Mi Circuit Breaker Box
Material: Mi 150 x 300 x 185 mm
Hensel #: Mi 1111
Cover screws and mounting screws included.

12 modules: 1 x 12 x 18 mm
With 1 hinged flap
Hinged flap lockable with accessories
With screw-type terminals for PE/N, for copper conductors
Per PE/N 10 x 16 mm², Cu
For installation of DIN rail equipment in accordance with DIN 43880
With blanking strips for unused DIN rail openings
Lid fasteners for tool operation
Material: PC (polycarbonate)
Protection class: II

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Catalog Page
  • Width 300 mm
    Height 150 mm
    Depth 185 mm
    Weight 1,811 kg
    IK08 (5 Joule)
