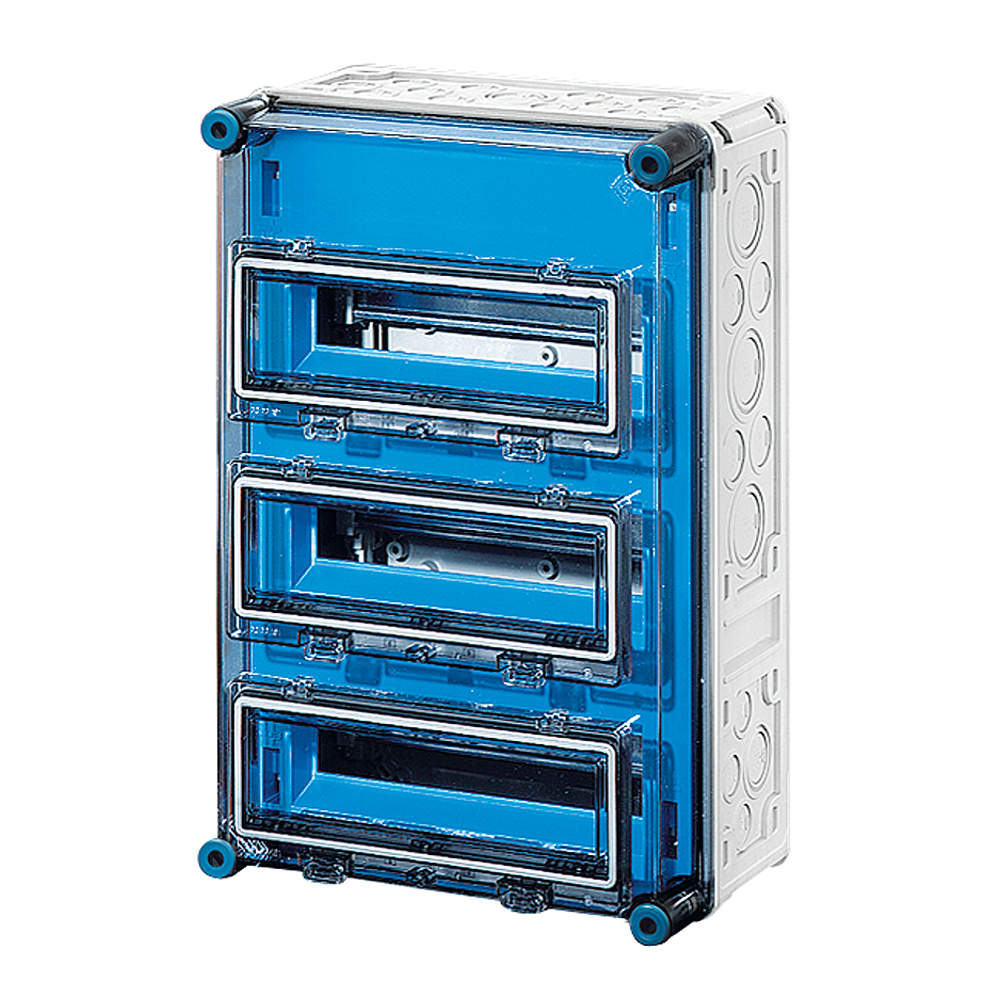

Hensel Mi Power Distribution Boards up to 630 A | Mi Circuit Breaker Box | Mi1333

Sealcon #: Mi1333
Size: Mi Circuit Breaker Box
Material: Mi 300 x 450 x 185 mm
Hensel #: Mi 1333
Cover screws and mounting screws included.

36 modules: 3 x 12 x 18 mm
With 3 hinged flaps
Hinged flap lockable with accessories
FIXCONNECT plug-in terminal technology for PE and N
Per PE/N 6 x 25 mm², 24 x 4 mm², Cu
N separable for different potentials
For installation of DIN rail equipment in accordance with DIN 43880
With blanking strips for unused DIN rail openings
Lid fasteners for tool operation
Material: PC (polycarbonate)
Protection class: II

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Catalog Page
  • Width 300 mm
    Height 450 mm
    Depth 185 mm
    Weight 4,236 kg
    IK08 (5 Joule)
