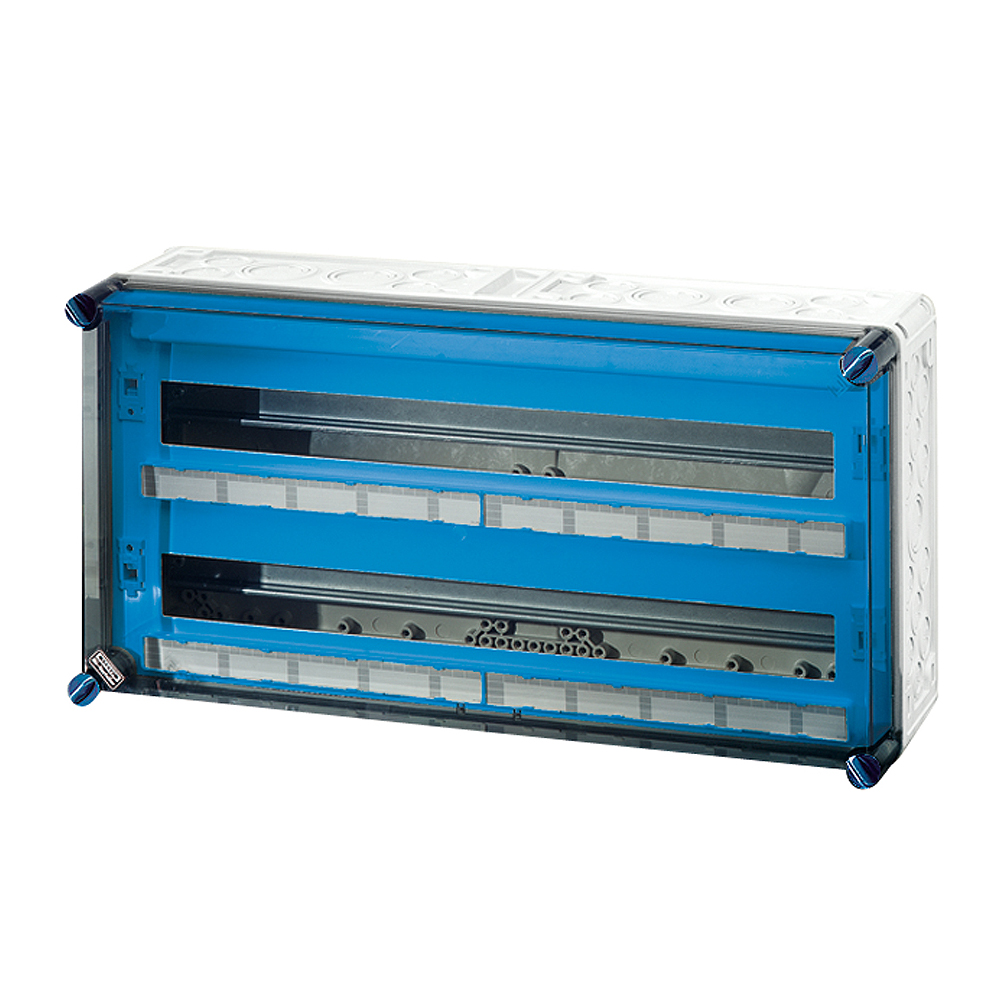

Hensel Mi Power Distribution Boards up to 630 A | Mi Circuit Breaker Box | Mi1456

Sealcon #: Mi1456
Size: Mi Circuit Breaker Box
Material: Mi 600 x 300 x 170 mm
Hensel #: Mi 1456
Cover screws and mounting screws included.

56 modules: 2 x 28 x 18 mm
FIXCONNECT plug-in terminal technology for PE and N
Per PE/N 6 x 25 mm², 24 x 4 mm², Cu
N separable for different potentials
For installation of DIN rail equipment in accordance with DIN 43880
With blanking strips for unused DIN rail openings
Lid fasteners for hand operation
With removable DIN rail rack and earth connection
DIN rail rack can be earthed
Material: PC (polycarbonate)
Protection class: II

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Catalog Page
  • Width 600 mm
    Height 300 mm
    Depth 170 mm
    Weight 5,28 kg
    IK08 (5 Joule)
