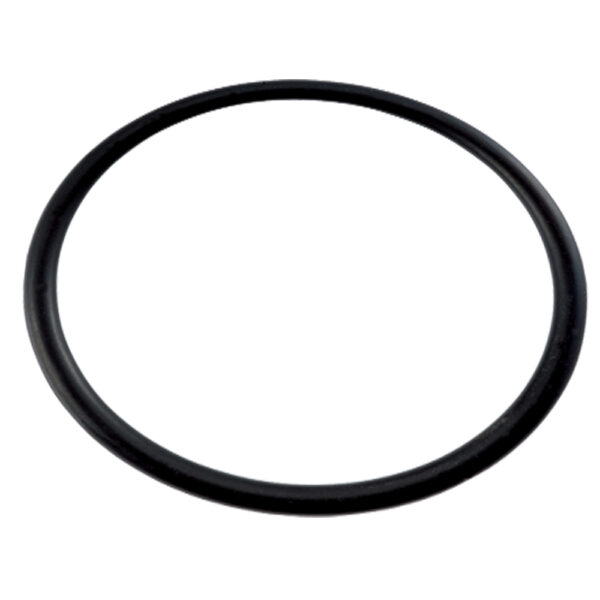

Buna-N O-Ring PG 16 | OR-16-BN

Sealcon #: OR-16-BN
Color: Black
Material: Buna-N
Hummel: O-Ring-NBR
Hummel #: 1.321.1600.17

PG 16

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Inner Diameter (D)0.71" (18 mm)
Height (E)0.06" (1.5 mm)
  • Features

    If NEMA 4x or 6 (European IP 68 – submersible) is required, O-Rings or Seal Rings (ordered separately) should be used when mounting Strain Relief Fittings to a control panel, secured with a locking nut. The Straight Strain Relief fittings feature a molded O-Ring groove. For these fittings, the Buna-N O-Ring is the best solution. The Snap Elbows and some of the Conduit Fittings do not have a recess for an O-Ring. In that case, the Polyethylene Seal Ring would be the best choice, unless the hole can be beveled to accommodate an O-Ring.
