Sealcon #: RM-4025-MX-D
Color: Nickel
Material: Nickel PlatedBrass
Hummel #: 1.878.4025.50

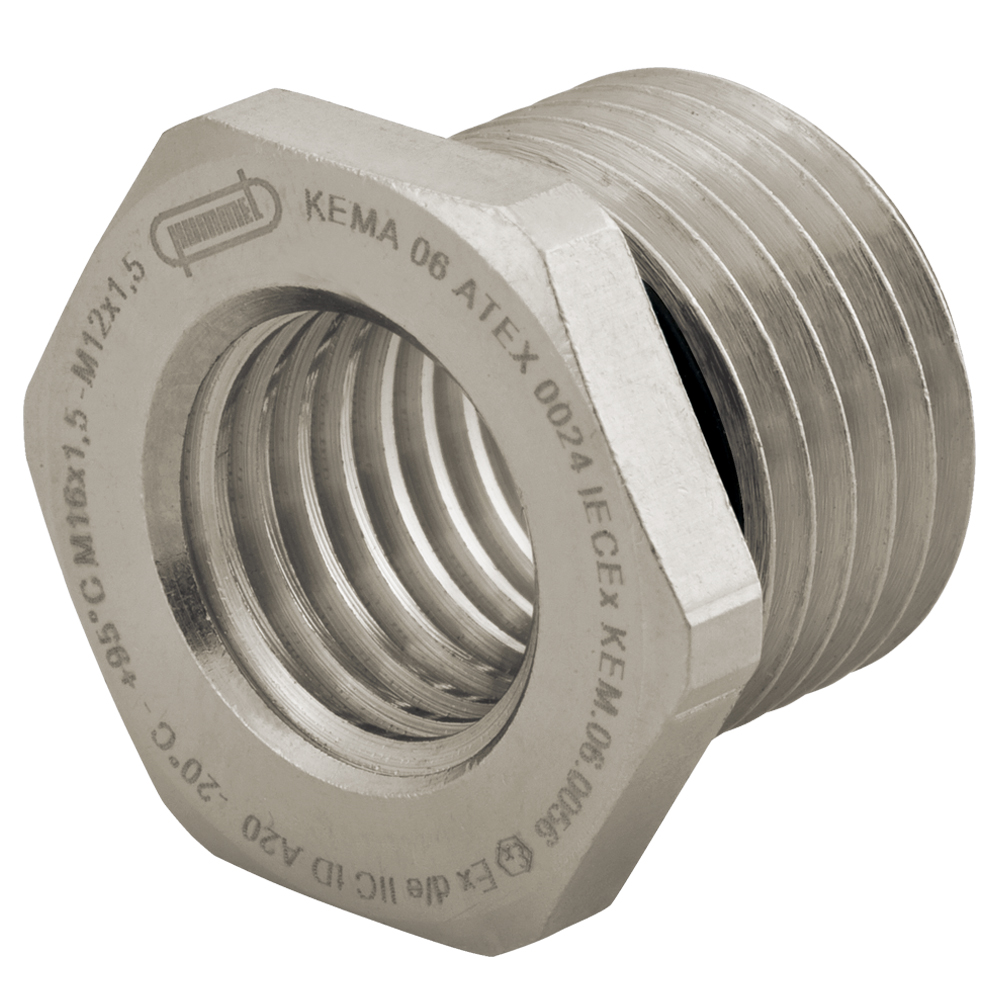

Reducers made of Nickel Plated Brass for hazardous locations „d“ with Buna-N O-Ring.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Thread Type Male (A) | M40 x 1.5 |
|---|---|
| Female (B) | M25 x 1.5 |
| Height (H) | 0.83" (21 mm) |
| Thread Length (T) | 0.63" (16 mm) |
| Wrench Flat (F1) | 1.81" (46 mm) |
PDF DOWNLOADS
Catalog Page-
Features
Is your thread size off by one size?
These Reducers will solve that threading problem.
Reducers will allow you to convert holes which fit PG, NPT & Metric threads to a smaller female thread of the same thread type to fit your application needs.
Thread Reducers are available in Gray Nylon, Nickel Plated Brass and Stainless Steel. -
Operating Temperature
-20C° to 95C° (-4°F to 203°F)Operating Temperature will vary based off selected O-Ring and the material of the product it is applied to.
Ex-protection level II 1D Ex ta IIIC Da,II 2G Ex db eb IIC Gb
ATEX - ATmosphere Explosible
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
German Lloyd
CE approval CE (Certified European Approval)
IECEx
PCT Approval
