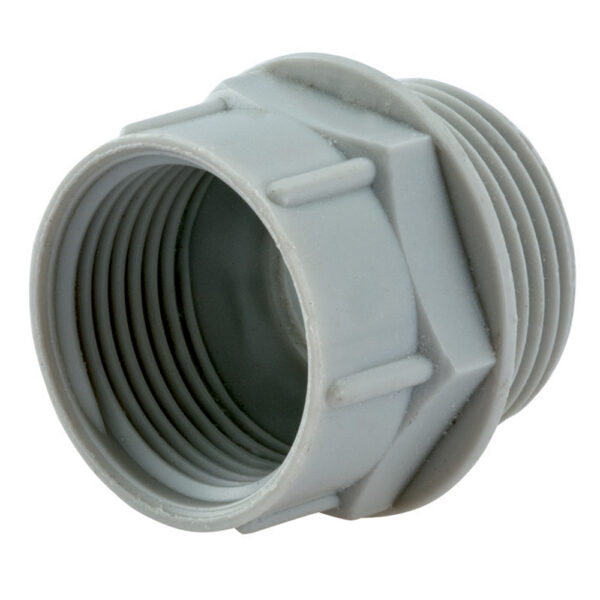

Sealcon #: RR-0907-GY
Color: Gray
Cable Range: B
Material: Nylon
Hummel: R-FS
Hummel #: 1.236.0907.11
Buna-N, FKM or Silicone O-Ring option available.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Thread Type Male (A) | PG 9 |
|---|---|
| Female (B) | PG 7 |
| Height (H) | 0.55" (14 mm) |
| Thread Length (T) | 0.31" (8 mm) |
| Outer Diameter (D) | 0.75" (19 mm) |
| Wrench Flat (F1) | 0.87" (22 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
Is your thread size off by one size?
These Reducers will solve that threading problem.
Reducers will allow you to convert holes which fit PG, NPT & Metric threads to a smaller female thread of the same thread type to fit your application needs. -
Materials: Gray Nylon Optional O-Ring: Buna-N, FPM or Silicone Optional Seal Ring: Polyethylene or Fiber-reinforced Plastic
Operating Temperature will vary based off selected O-Ring and the material of the product it is applied to.
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
