UL Polycarbonate Metric Enclosure | Plain Sides Gray Cover | S3110050081GU

Sealcon #: S3110050081GU

Size: L3.22" x W3.14" x D2.20" (82 x 80 x 56mm)

Material: Polycarbonate

Ensto Enclosures: Cubo D

Ensto #: DPCP080806G.U

Cover screws and mounting screws included.

Discontinued Part, Limited Supply.
Contact Us for Quantity or Possible Alternatives.

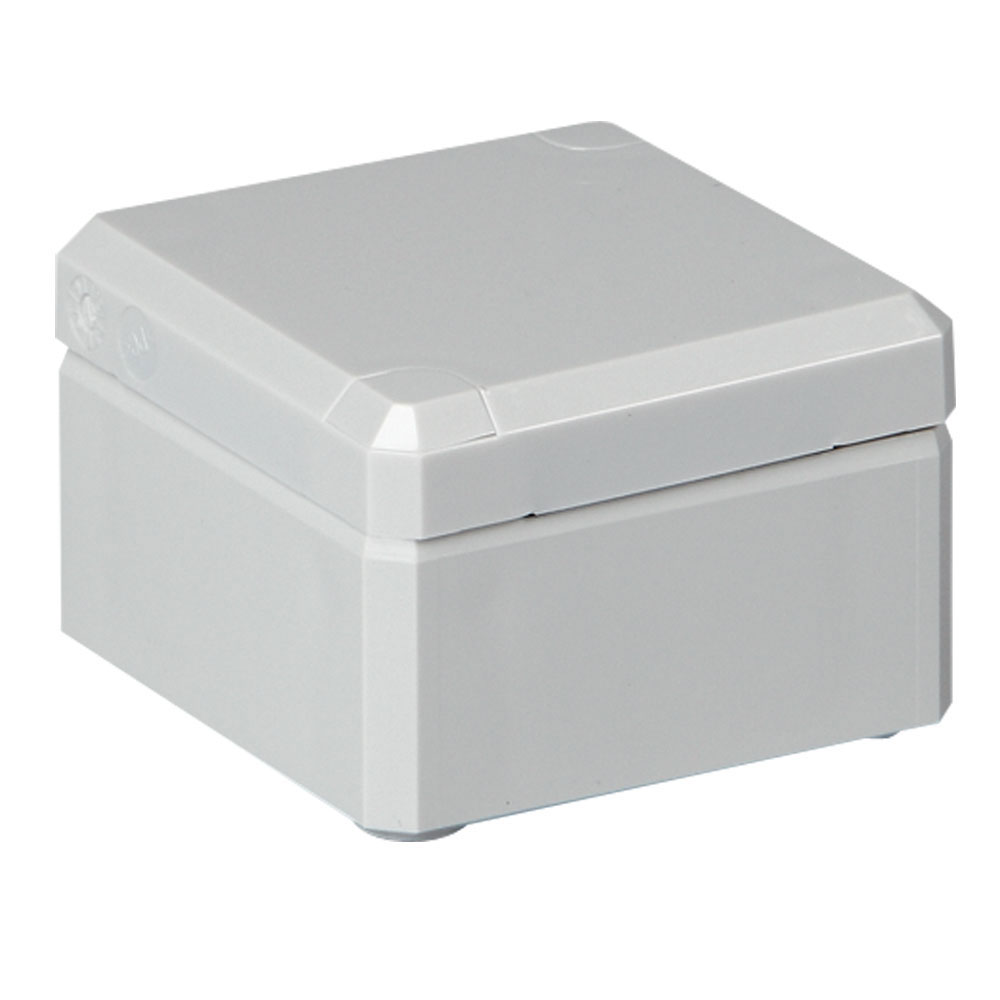

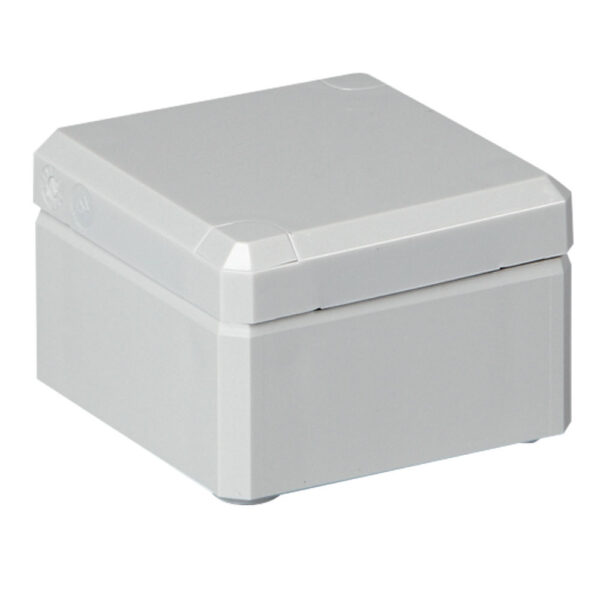

Polycarbonate Enclosure with Plain Sides and Gray Cover.

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Features

Series D Enclosure in Brief:
- Available in plain sides
- contemporary design with faceted corners and cover plugs
- Includes fastening pods inside the cover
- Slots in the base for printed circuit boards
UL File No:

E189312

UL category:

NITW, NITW7

Environmental type (UL):

4, 4x, 12, 13, 6

Insulation:

Class ||
Impact
IK08 (-13°F - 95°F -25°C - +35°C)
Operating Temperature
-40C° to 80C° (-40°F to 176°F)
Fire Resistance
UL746C
APPROVALS
