UL Polycarbonate Metric Series S Enclosures | Plain Sides Transparent Cover | S3120081306TU

Sealcon #: S3120081306TU
Size: L4.92" x W2.95" x D2.36" (125 x 75 x 60mm)
Material: Polycarbonate
Ensto Enclosures: Cubo S Enclosure
Ensto #: SPCP081306T.U

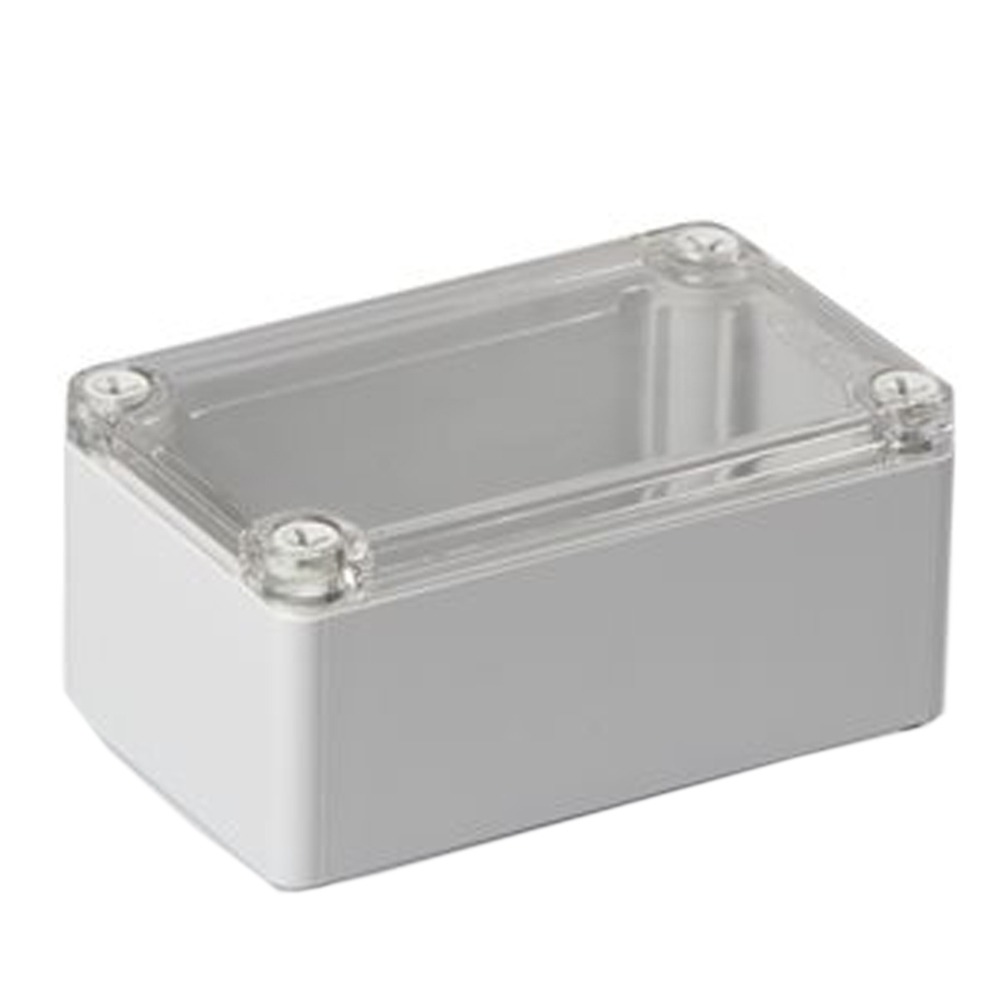

Polycarbonate Enclosure with Plain Sides and Transparent Cover.

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Catalog Page
  • Features

    Series S Enclosure in brief:

    • Available with plain sides or knockouts
    • Available in 36 sizes, two base depths (25 and 50 mm) and 5 different cover heights
    • Cover and cover screws equipped with sealing holes
    • Slots in the base for printed circuit boards

    Contents of the product package:

    • Enclosure base
    • Cover
    • Cover screws
    • Mounting screws

  • UL File no:


    UL category:


    Environmental type (UL):

    4, 4x, 12, 13, 6

    Environmental type (cUL):

    4, 4x, 12, 6

    Outdoor suitability:

    UL 746C (f1) rated material


    Class ||
    IK 08
    Operating Temperature
    -40C° to 80C° (-40°F to 176°F)
    Fire Resistance
    UL 746C 5 inch flame test
