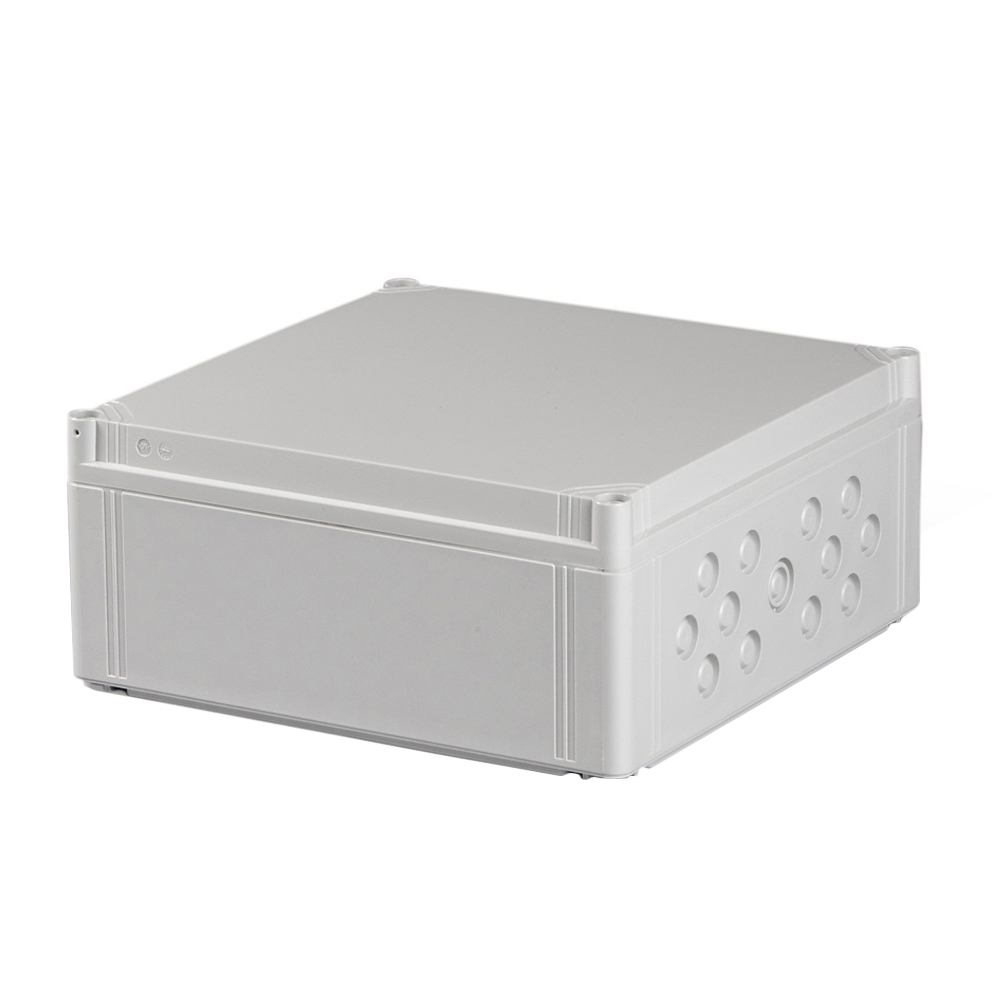

UL Fiberglass Reinforced Polyester Metric Enclosure | Metric Knockouts Gray Cover | S3130057899MGU

Sealcon #: S3130057899MGU
Size: L11.81" x W11.81" x D5.20" (300 x 300 x 132mm)
Material: Polycarbonate
Ensto Enclosures: Cubo O
Ensto #: OPCM303013G.U
Cover screws and mounting screws included.

Polycarbonate Enclosure with Metric Knockouts and Gray Cover.

Knockouts B: 12 x ∅ 20mm + 1 x ∅ 16mm / 25mm

Knockouts D: 8 x ∅ 20mm + 4 x ∅ 25mm / 40mm

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Catalog Page
  • Features

    Series O, W enclosure in brief:

    • Series O has plain sides or with metric knockouts
    • Series W has pre-assembled hinges and quick release latches as standard, available with plain sides.
    • Available in 8 base sizes, one base depth and one cover height
    • Series O have 55-millimeter-deep extension frame available for alternative depths in all sizes. Several extension frames can be used on top of one another in one enclosure.
    • Cover and cover screws equipped with sealing holes
    • Cover can also be mounted onto the back of the base
    • Wide range of accessories available.

    Contents of the product package:

    132-millimeter-deep standard enclosure includes:

    • Enclosure base
    • Cover
    • Cover screws or latches and hinges
    • Mounting screws

    187-millimeter-deep standard enclosure includes:

    • Enclosure base
    • Cover
    • Extension frame
    • Cover screws or latches and hinges
    • Mounting screws
    • Screws for the extension frame

  • UL File no:


    UL category:


    Environmental type (UL):

    4, 4X, 12, 13


    Class ||

    Outdoor suitability:

    UL 746C (f1) rated material


    Fiberglass reinforced polycarbonate



    Cover screws:

    Fiberglass reinforced polyamide
    IK 08 (-13° 95°F / -25°C...+35°C)
    Operating Temperature
    -40C° to 80C° (-40°F to 176°F)
    Fire Resistance
    UL 746C
