Features

Contacts are specific to the Inserts and number of Poles on your Connector.

There are two types of Contacts: Pins and Sockets. Pins are installed as Male connections and Sockets are installed as Female connections.
Each Pin or Socket contact has a different installation based on the number of Contacts needed and size of the Contact.

For example, if your Connector has a 3-Pole Insert labeled (3 x 1mm), you need three 1mm Contacts for your Insert. Likewise, if your Connector has a 3-Pole insert labeled (3 x 2mm), you need three 2mm contacts.
Contacts are not universal, so check to see if there is a Required Contact for your installation.
If you have any questions please submit a quote and one of our experts will contact you to verify you have the correct configuration for your desired Connector.

Characteristic of Connection: Crimp
Insert: Socket

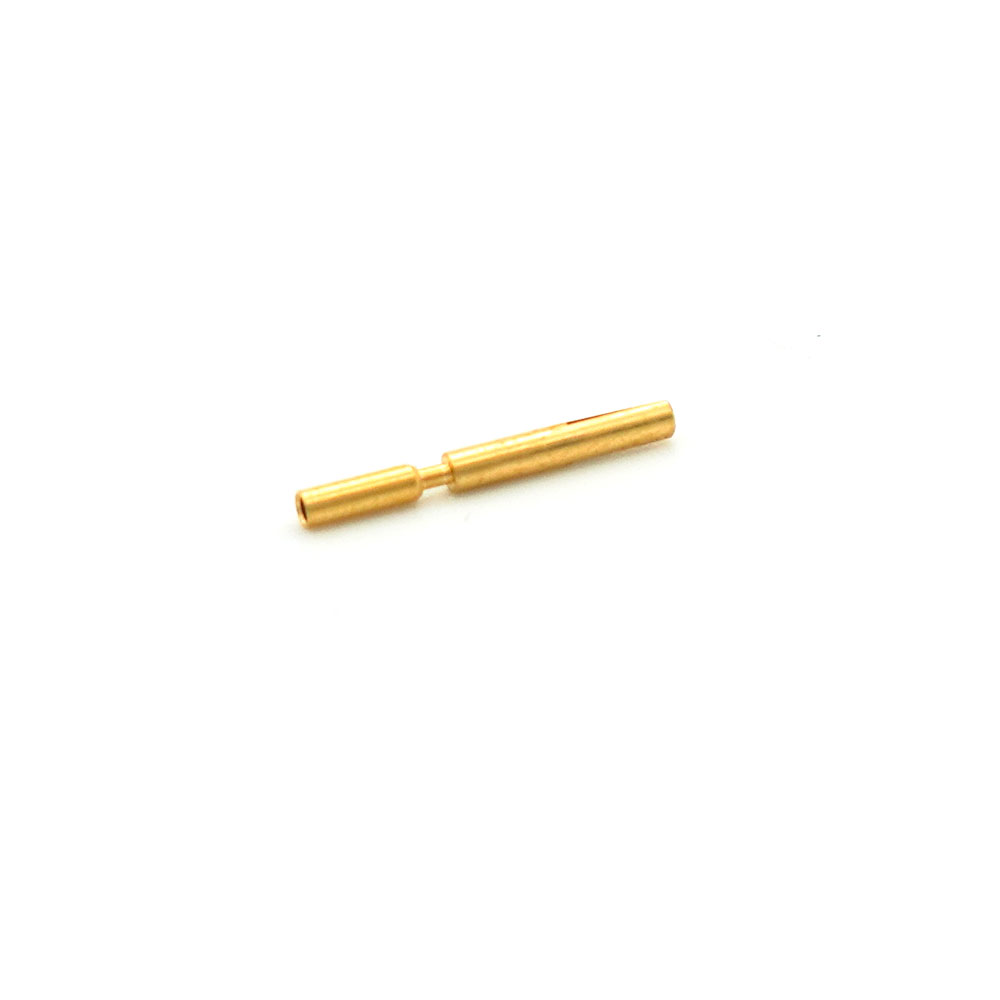

Crimp Contact: Crimp Pin Signal 0.8 mm Slotted
Contact Material: Copper-Zinc Alloy
Contact Surface Material: Nickel, Gold Plated (0.25 µm)
Contact-Ø Signal: 0.8 mm
Length (L): 14.4 mm
Crimp Range: 0.08 – 0.34 mm²
Suitable Crimping Tool: S7.000.900.904
