Number of Poles: 13 (4 Data │ 4 Signal │ 4 Power │ 1 PE)

Required Contacts: Data 4x │ Signal 4x │ Power 4x │ PE 1x

Crimp Range: Data 0.14–1.0 mm² │ Signal 0.14–1.5 mm² │ Power 0.75–4.0 mm² │ PE 0.75–4.0 mm²

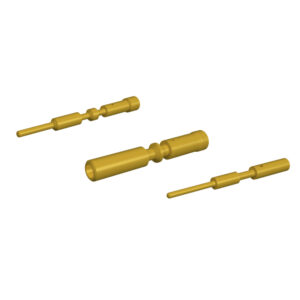

Type of Contact: Crimp, Socket, Coding PE, Pole layout 4+4+4+PE

Contact Ø: Data 0.8 mm │ Signal 1 mm │ Power 2 mm │ PE 2 mm

Nominal current data: –

Nominal current signal: 8 A

Nominal current power: 28 A

Nominal voltage at degree of pollution 3 data: –

Nominal voltage at degree of pollution 3 signal: 50 V~

Nominal voltage at degree of pollution 3 power: 600 V~

Insulation resistance: ≥ 10⁸ Ω

Max. contact resistance: 3 mΩ

Temperature range: -40°C to +125°C
