Sealcon #: S7.566.600.00S
(housing only)

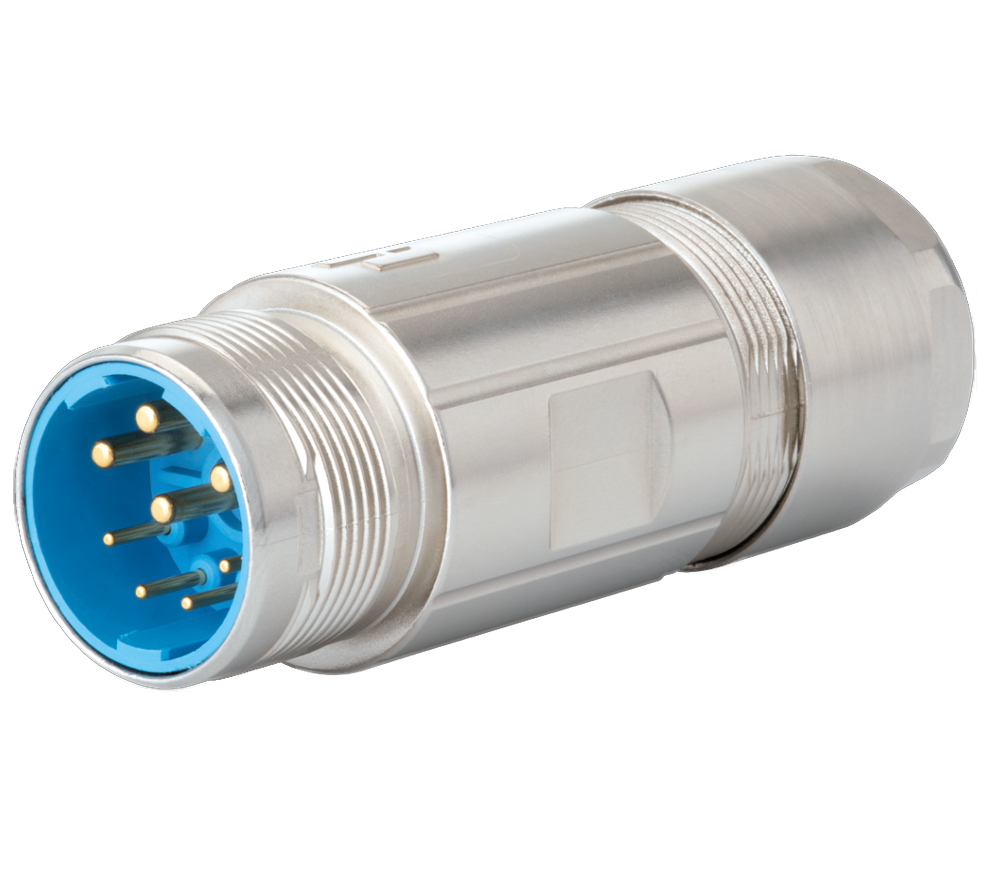

M23 TWILOCK-S Power Straight Connector, EMI
Cable Range: .43" - .67" (11 - 17 mm)
Hummel: M23 Power Straight Connector, Male Thread
Hummel #: 756660000S
The housings of M23 Hybrid and M23 Power are identical due to our modularity.
Housing without contact inserts
Electrical data depend on the contact insert
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

-
Features
- Quick connecting style
- High protection rate
- Easy connection/disconnection even under tight space conditions
- This unique connector features a panel-mounted Dual Function Connector suitable for threaded and push-pull (quick disconnect) connection
- Initially the connector can be specified with the more economical threaded connector and later converted to the more user-friendly push-pull style
These Circular Connectors feature Quick Connect with Patented Polygon Lock, easy handling and exceptional functionality. Multi-functional TWILOCK Connectors are ideal with TWILOCK and Screw Connection.
TWILOCK has clearly defined Positioning and can be locked with slight rotation from OPEN to CLOSE. A special feature allows use of TWILOCK and screw connection. HUMMEL TWILOCK Connectors guarantee a quick connecting high cycle rate, high protection rate and easy connection/disconnection even under tight space conditions.
-
Housing Type: Coupler
Housing Material: Zinc Die Cast, Brass
Housing Surface: Nickel Plated
Insert: Pin
Version: Screw, TWILOCK-S
External Thread (Plug-in Side): M23 x 1
Locking Type: Screw, TWILOCK-S
Shield: Shielded
Seal Type: O-Ring
Seal/O-Ring Material: FKM (FPM)
Wrench Size (SW1/SW2): 24/24 mm
Cable Diameter: 11 – 17 mm
Temperature Range: -40°C to +125°C
Protection Class: IP 67, IP 69K INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.084.909.101
Insert 9-Pole 5 x 1 mm + 4 x 2 mm Contact Ø signal 1 mm
Contact Ø performance 2mm
Signal connection cross section 0.14 – 1.5 mm²
Connection cross section power 0.75 – 4 mm²
Rated current signal 8 A
Rated current power 28 A
Rated voltage at pollution degree 3 performance 600V~
Test voltage signal 2500V~
Test voltage performance 4000V~
Insulation resistance signal > 10^13 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhmS7.084.909.102
Insert 9-Pole Insert - Contacts 5 + 4 Contact Ø signal 1 mm
Contact Ø performance 2mm
Signal connection cross section 0.14 – 1.5 mm²
Connection cross section power 0.75 – 4 mm²
Rated current signal 8 A
Rated current power 28 A
Rated voltage at pollution degree 3 performance 600V~
Test voltage signal 2500V~
Test voltage performance 4000V~
Insulation resistance signal > 10^13 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhmS7.084.910.101
Insert 10-Pole 10 x 1 mm Number of Positions: 10
Number of Contacts: 10
Contact-Ø (mm): 1
Nominal Current1) [A]: 10
Nominal Voltage2) [V~] degree of protection 33): 160
Test Voltage (Breakdown Voltage) 4) [V~]: 2500
Insulation Resistance [MΩ]: > 1013
Max. Contact Resistance [mΩ]: 3S7.084.910.102
Insert 10-Pole 10 x 1 mm S7.084.943.121
Insert 4+3+PE S7.084.943.122
Insert 4+3+PE S7.084.951.122
Insert 5+PE S7.084.953.101
Insert 5 + 3 + PE 5 x 1 mm + 3 x 2 mm + PE Contact Ø signal 2mm
Contact Ø performance 1 mm
Signal connection cross section 0.75 – 4 mm²
Connection cross section power 0.75 – 4 mm²
Rated current signal 8 A
Rated current power 28 A
Rated voltage at pollution level 3 signal 160V~
Rated voltage at pollution degree 3 performance 600V~
Test voltage signal 2500V~
Test voltage performance 4000V~
Insulation resistance signal > 10^13 Ω
Insu
lation resistance performance > 10^13 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhmS7.084.953.102
Insert 5 + 3 + PE 5 x 1 mm + 3 x 2 mm + PE CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.941.001
Crimp Pin 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.002
Crimp Socket 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.021
Crimp Pin 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.941.022
Crimp Socket 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.942.001
Crimp pin 2mm, machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.002
Crimp Socket 2 mm Machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.011
Crimp Pin 2 mm Machined 2.5 - 4 mm2 AWG 14 - AWG 12 S7.010.942.012
Crimp Socket 2 mm Machined 2.5 mm2- 4.0 mm2AWG 14 - AWG 12 S7.010.940.801
Hybrid Crimp pin signal 0.8 mm turned 0.08 – 0.34mm² S7.010.941.001
Crimp Pin 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.002
Crimp Socket 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.021
Crimp Pin 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.941.022
Crimp Socket 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.942.001
Crimp pin 2mm, machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.002
Crimp Socket 2 mm Machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.011
Crimp Pin 2 mm Machined 2.5 - 4 mm2 AWG 14 - AWG 12 S7.010.942.012
Crimp Socket 2 mm Machined 2.5 mm2- 4.0 mm2AWG 14 - AWG 12 S7.010.942.021
Hybrid Crimp pin signal 2 mm turned 0.75 – 2.5mm² S7.010.942.022
Hybrid Crimp Socket Power 2 mm Turned 0.75 – 2.5mm² S7.010.942.023
Hybrid Crimp Pin Power 2 mm Turned 2.5 – 4mm² S7.010.942.024
Hybrid Crimp Socket Power 2 mm Turned 2.5 – 4mm² S7.010.960.611
Hybrid Crimp Data Pin 0.6 mm, machined 0.05 - 0.34 mm2 (AWG 30 - 22) S7.010.960.612
Hybrid Crimp Data Socket 0.6 mm, machined 0.05 - 0.34 mm2 (AWG 30 - 22) S7.010.980.602
Crimp Socket 0.6 mm Machined 0.08 mm2- 0.34 mm2 S7.010.980.643
Crimp Pin 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.980.812
Crimp Socket 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.015.961.001
Hybrid Crimp Data / Signal Pin 1 mm, machined 0.14 - 1 mm2 (AWG 26 - 17) S7.015.961.002
Hybrid Crimp Data / Signal Socket 1 mm, machined 0.14 - 1 mm2 (AWG 26 - 17)


CSA approval CSA (Canadian Standard Association)
UR (Recognized Underwriters Laboratories)
VDE approval VDE (Association of German Electrical Engineers)
