Sealcon #: S7.639.200.00S
(housing only)
M23 Hybrid Type 2 TWILOCK-S Panel Connector
Cable Range: 4 x Holes Ø 3.2 mm
Hummel: M23 Hybrid Type 2 Straight Connector, Male Thread
Hummel #: 7.639.200.00S
Inserts & Contacts sold separately.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Data Sheet-
Housing type: Panel Angled
Material housing: Zinc Die Cast
Material housing surface: Nickel
Installation type: Rear Wall
Version: Screw, TWILOCK-S, Right Angled, Rotatable
External thread plug-in side: M23 x 1
Locking type: Screw
Shield: Unshielded
Seal type: O-Ring
Material seals / o-rings: FKM (FPM)
Rotatable: 330°
Panel hole: Ø 20 + 0.1 mm
Flange: 25 x 25 mm
Hole distance: 19.8 mm
Hole diameter: 4 x Ø 3.2 mm

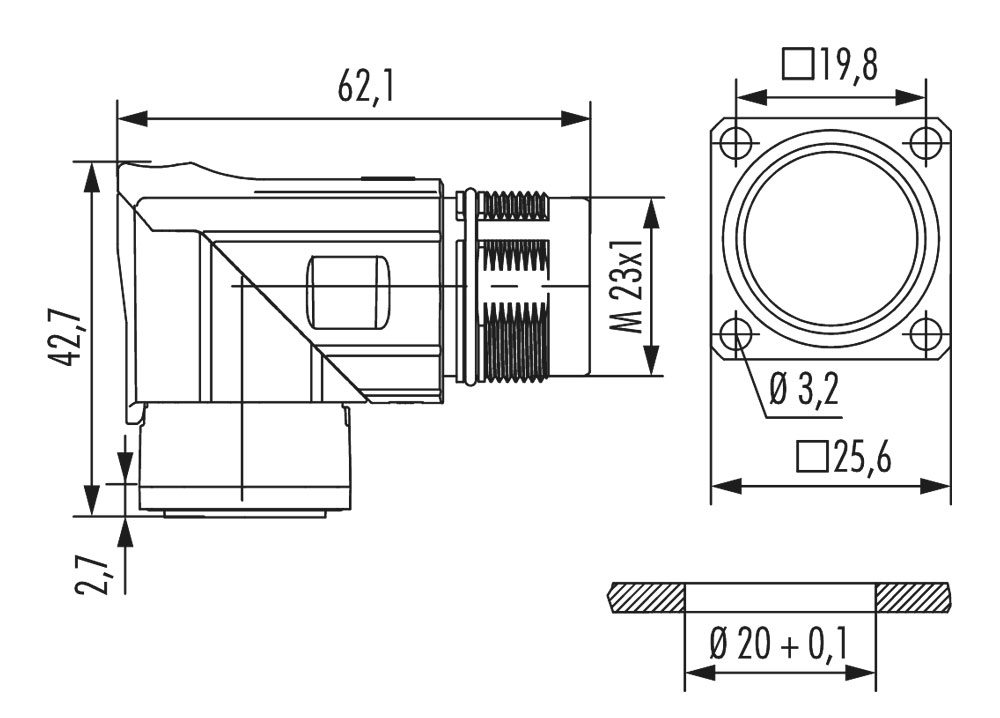

Length (L): 62.1 mm
Protection class: IP 67, IP 69K
Temperature range: -40 °C to 125 °C INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.084.954.101

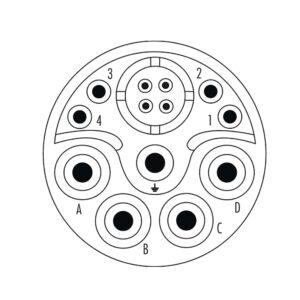

Insert 13 Pole 4+4+4+PE S7.084.954.102
Insert 13 Pole 4+4+4+PE CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.942.021
Hybrid Crimp pin signal 2 mm turned 0.75 – 2.5mm² S7.010.942.023
Hybrid Crimp Pin Power 2 mm Turned 2.5 – 4mm² S7.010.940.801
Hybrid Crimp pin signal 0.8 mm turned 0.08 – 0.34mm² S7.015.961.001
Hybrid Crimp Data / Signal Pin 1 mm, machined 0.14 - 1 mm2 (AWG 26 - 17) S7.010.941.001
Crimp Pin 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.002
Crimp Socket 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.021
Crimp Pin 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.941.022
Crimp Socket 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.942.001
Crimp pin 2mm, machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.002
Crimp Socket 2 mm Machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.011
Crimp Pin 2 mm Machined 2.5 - 4 mm2 AWG 14 - AWG 12 S7.010.942.012
Crimp Socket 2 mm Machined 2.5 mm2- 4.0 mm2AWG 14 - AWG 12 S7.010.942.022
Hybrid Crimp Socket Power 2 mm Turned 0.75 – 2.5mm² S7.010.942.024
Hybrid Crimp Socket Power 2 mm Turned 2.5 – 4mm² S7.010.960.611
Hybrid Crimp Data Pin 0.6 mm, machined 0.05 - 0.34 mm2 (AWG 30 - 22) S7.010.960.612
Hybrid Crimp Data Socket 0.6 mm, machined 0.05 - 0.34 mm2 (AWG 30 - 22) S7.010.980.602
Crimp Socket 0.6 mm Machined 0.08 mm2- 0.34 mm2 S7.010.980.643
Crimp Pin 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.980.812
Crimp Socket 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.015.961.002
Hybrid Crimp Data / Signal Socket 1 mm, machined 0.14 - 1 mm2 (AWG 26 - 17)
