M23 Hybrid Type 2 TWILOCK-S Panel Connector with Strain Relief
Cable Range: Ø 25 + 0,1 mm
Hummel: M23 Hybrid Type 2 Panel Connector, with Strain Relief, Male Thread
Hummel #: 7.653.300.00S

Inserts & Contacts sold separately.

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Data Sheet
  • Material housing: Brass

    Material housing surface: Nickel

    Seal type: O-Ring

    Material seals/O-rings: FKM (FPM) │ NBR

    Housing type: TWILOCK-S

    External thread plug-in side: M23 x 1

    Locking type: Screw

    Shield: Shielded

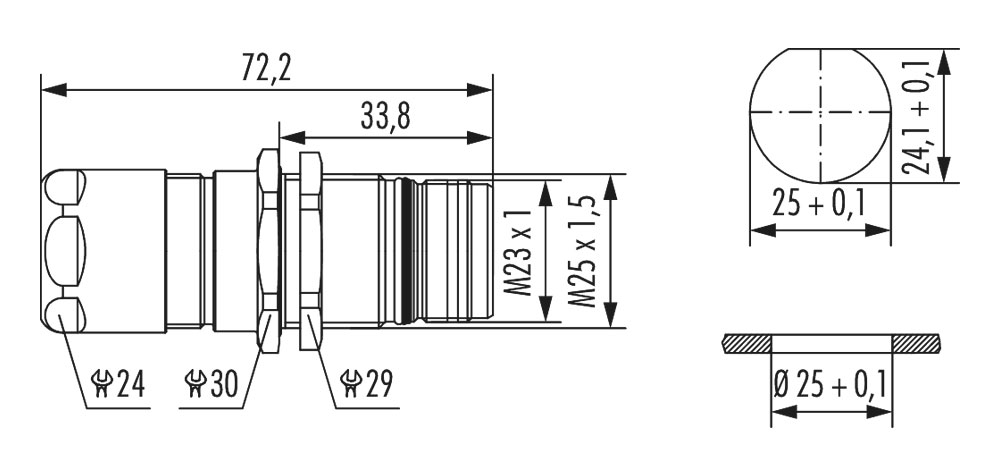

    Panel hole: Ø 25 + 0.1 mm

    Length (L): 72.2 mm

    Wrench size (SW): 30 mm

    Cable diameter: 7 – 12 mm

    Protection class: IP 67

    Temperature range: -40°C to +125°C

  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    S7.084.954.101
    Add to Quote
    		Insert 13 Pole4+4+4+PE
    S7.084.954.102
    Add to Quote
    		Insert 13 Pole4+4+4+PE

  • CONTACTS

    Part NumberImageAdd to QuoteType of ContactCrimp Range
    S7.010.942.021
    Add to Quote
    		Hybrid Crimp pin signal 2 mm turned0.75 – 2.5mm²
    S7.010.942.023
    Add to Quote
    		Hybrid Crimp Pin Power 2 mm Turned2.5 – 4mm²
    S7.010.940.801
    Add to Quote
    		Hybrid Crimp pin signal 0.8 mm turned0.08 – 0.34mm²
