Sealcon #: SA712-7.S20.300.000
(housing only)

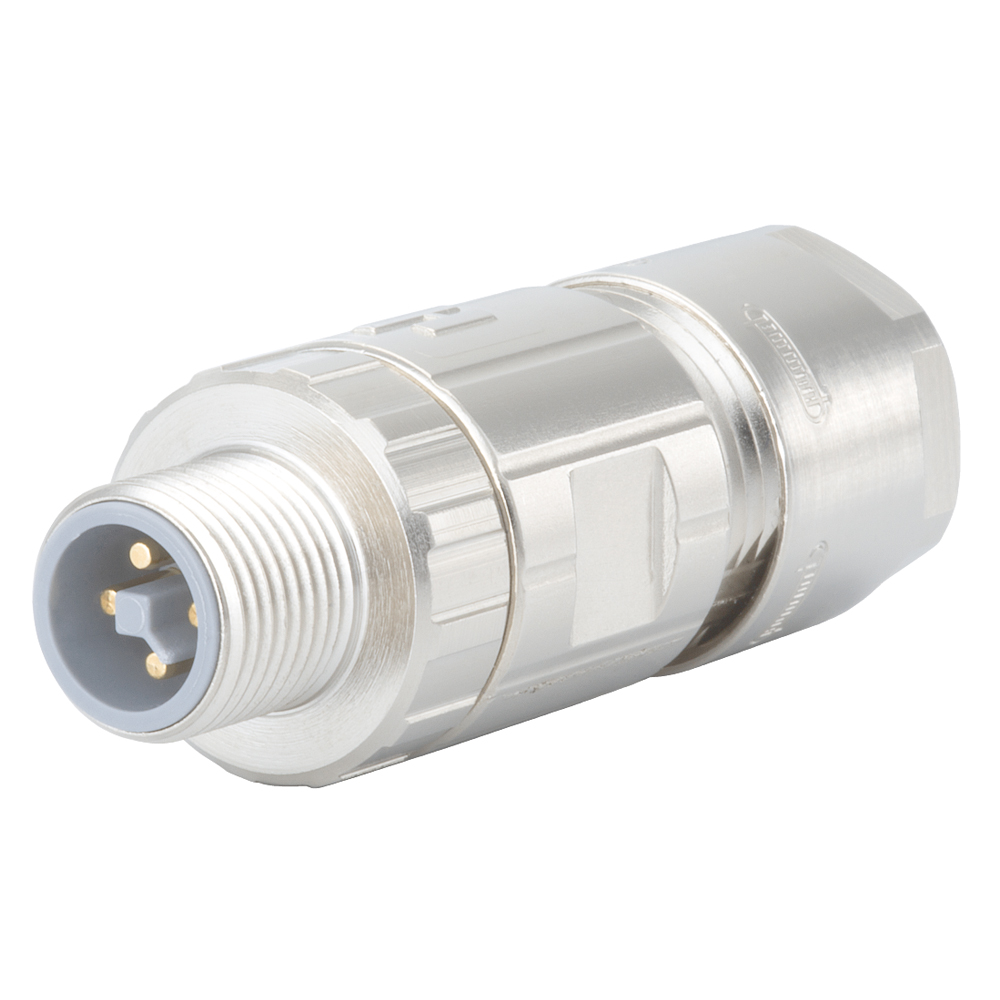

M12 Power Connector- Male Thread
Cable Range: .12 - .24" (3 - 6 mm)
Material: Nickel Plated Brass
Hummel: M12 Power cable connector
Hummel #: A712-7S20300000
Coding S,T (for 4 contact positions) See data sheet under Downloads
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
This circular connector opens the door to entirely
new applications and capabilities! Its high power
transmission, compact design and the large
temperature range are extraordinary features. The
electro-mechanical features of this compact power
connector are convincing!• Power transmission to 12A and 630V
• Protection IP67 and IP69K
• Cable diameter up to 11mm (0.43″)
• Temperature range to 125 degree Celsius
• EMI (EMC) Shielding in standard version
• S, T (for 4 contact positions)
• Robust metal housing
• Compact designs
• Optional stainless steel
• UL Certified -
TYPE: Power or Signal
CONTACTS: Crimp & Screw
PIN-OUT: 4, 5 (4 + PE)
AWG: S & T Screw: 16-20 K & L Crimp: 14-18
AMPERE: 12 - 16A
VOLT: 63 - 630V
CABLE RANGE: 3-11 mm (.12"- .43")
TEMPERATURE: -40°F to 257°F (-40°C to 125°C)
OPTIONS: Threaded, Over mold cord sets, 316L Stainless Steel, Black Chrome-Plated.
UNIQUENESS: Low profile, High power transmission, IP67 & IP69K, Robust metal housing, EMI ready UL, VDE.
APPLICATIONS AC / DC Motors, Motor Control Switches, Aux. Power Distribution, LED &Conventional Lighting, Network Devices, Robotics. INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data SA7127K03941101
Insert K (Crimp) 4 + PE 630V16Amps SA7127K03941102
Insert K (Crimp) Insert K 4 630V16Amps SA7127L03941101
Insert L (Crimp) 4 + PE 63V 16Amps SA7127L03941102
Insert L (Crimp) 4 + PE 63V 16Amps SA7127S05931105
Insert S (Screw) Crimp pin 3 + PE 630V 12Amps SA7127S05931106
Insert S (Screw) Crimp socket 3 + PE 630V 12Amps SA7127T05904105
Insert T (Screw) Crimp pin 4-pole 63V 12Amps SA7127T05904106
Insert T (Screw) Crimp pin 4-pole 63V 12Amps CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range SA7127010901522
Crimp Socket 1.5 mm Machined 0.75 mm² SA7127010901531
Crimp Pin 1.5 mm Machined 1.5 mm² 1.5 mm² SA7127010901532
Crimp Socket 1.5 mm Machined 1.5 mm² SA7127010901541
Crimp Pin 1.5 mm Machined 2.5 mm² 2.5 mm² SA7127010901542
Crimp Socket 1.5 mm Machined 2.5 mm² SA7127010911522
Crimp Socket 1.5 mm Machined PE 0.75 mm² 0.75 mm² SA7127010911532
Crimp Socket 1.5 mm Machined PE 1.5 mm² 1.5 mm² SA7127010911542
Crimp Socket 1.5 mm Machined PE 2.5 mm² 2.5 mm²
UL approval UL (Listed Underwriters Laboratories)
