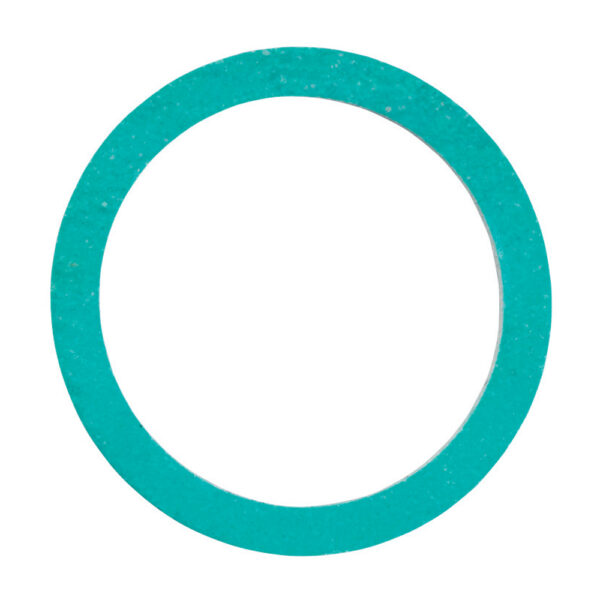

Green Fiber Reinforced Seal Ring M25 x 1.5 | SM-25-HD

Sealcon #: SM-25-HD
Color: Green
Material: Fiber-Reinforced-Plastic
Hummel: Thread Seal Ring HD
Hummel #: 1.325.2500.50

M25 x 1.5
Flat sealing rings made of fiber-reinforced plastic

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Inner Diameter (A)0.98" (25 mm)
Outer Diameter (B)1.22" (31 mm)
Height (C)0.08" (2 mm)
  • Features

    If NEMA 4x or 6 (European IP 68 – submersible) is required, O-Rings or Seal Rings (ordered separately) should be used when mounting Strain Relief Fittings to a control panel, secured with a locking nut. The Straight Strain Relief fittings feature a molded O-Ring groove. For these fittings, the Buna-N O-Ring is the best solution. The Snap Elbows and some of the Conduit Fittings do not have a recess for an O-Ring. In that case, the Polyethylene Seal Ring would be the best choice, unless the hole can be beveled to accommodate an O-Ring.
