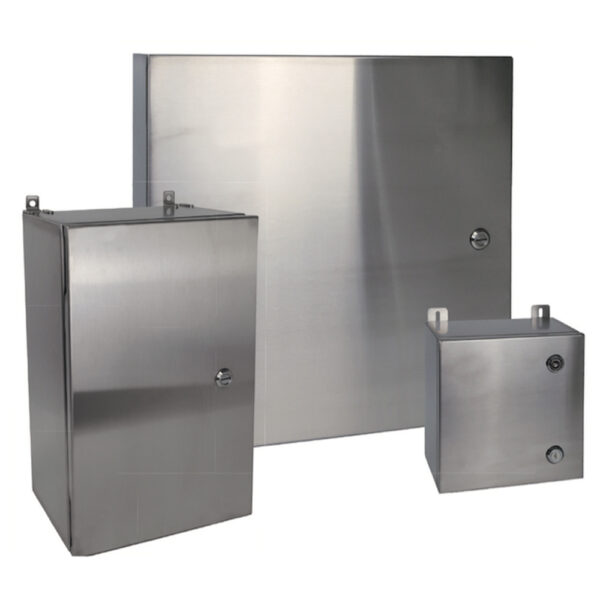

Stainless Steel Enclosure 30" x 24" x 10" | Strongbox Series S+ | SW302410-4PQ-BT
Sealcon #: SW302410-4PQ-BT
Size: 30" x 24" x 10" (762 x 609.6 x 254 mm)
Material: Stainless Steel
Integra #: W302410-4PQ-BT
Cover screws and mounting screws included.
  • 304 Stainless Steel with Grade #4 Finish
  • UL/NEMA 4X (IP66)
  • Removable Pin Hinge (PingeTM) / Opaque
  • Bolted Tabs
  • Quarter-Turn Latch
  • Door Opens 180+ Degrees
  • Wall Mount
  • Grounding Lug
  • Standoff Back Panel Studs (Back Panel Not Included)
Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

  • Features

    • Made in the USA
    • 304 Stainless Steel with Grade #4 Finish
    • Seams Continuously Welded and Ground Smooth
    • Removable Pin Hinge (Pinge™)
    • Door Opens 180+ Degrees
    • Standoffs Provided for Mounting Optional Subpanels
    • Mounting Tabs Included
    • Chemical, Corrosion & Hosedown Resistant
    • Stainless Steel 1/4 Turn Latch
    • Water & Oil Resistant Foam-In-Place Urethane Gasket
    • Flange Collar Around All Sides of Door Opening
    • Grounding Stud on Door and Body
    • Multiple Sizes Available


  • APPROVALS
