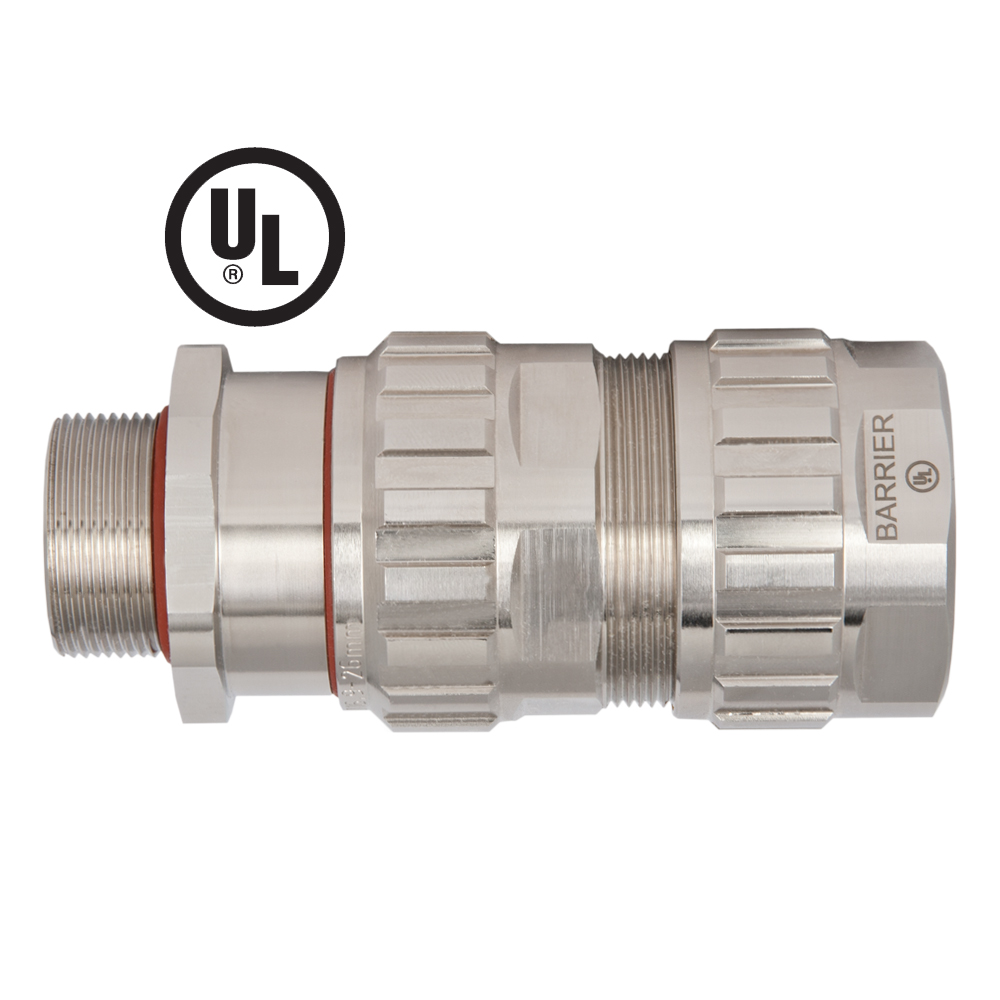

EXIOS UL Barrier Cable Gland M25 x 1.5 | YU25MM-BR

Sealcon #: YU25MM-BR
Material: Nickel Plated Brass
Hummel: EXIOS UL Barrier
Hummel #: 1.6U6.2503.51
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.98" (25 mm)
Body Length (H)3.58" (91 mm)
Thread Length (GL)0.63" (16 mm)
Wrench Flat (F1)1.42" (36 mm)
Cable Range 1.67 - 1.02" (16.9 - 26 mm)
Cable Range 2.79" (20 mm)
Cable Range 3.65" (16.4 mm)
Clamping Ring 20.04 - 0.06" (0.9 - 1.6 mm)
Gland Size25
Outer Diameter (D)1.65" (42 mm)
  • Features

    This Gland for armored cable is being UL tested for Class & Div 1 for Marine Shipboard cable with manufacturer’s Designation “Kneadaseal” seal compound. These fittings are intended for installation on mobile offshore oil rigs and drilling platforms in accordance with subpart 111.60 of the United States Coast Guard Electrical Engineering Regulations.

    High-end Raw Brass Cable Gland for armored cables suitable for for applications in challenging hazardous locations.
    Designed for all explosion proof areas with high performance regarding reliability and tightness, e.g. marine, offshore, gas conveying machinery, refineries and chemical industry.
    for use in Ex-e, Ex-d areas.

    Certification Details: EXIOS UL Barrier
    UL File: E351373
    Class I, Division 1 & 2, Groups C and D
    Class II, Division 1 & 2, Groups E, F and G
    Class III
    Class I, Zone 1, AEx d IIB
    Class I, Zone 1, AEx e II

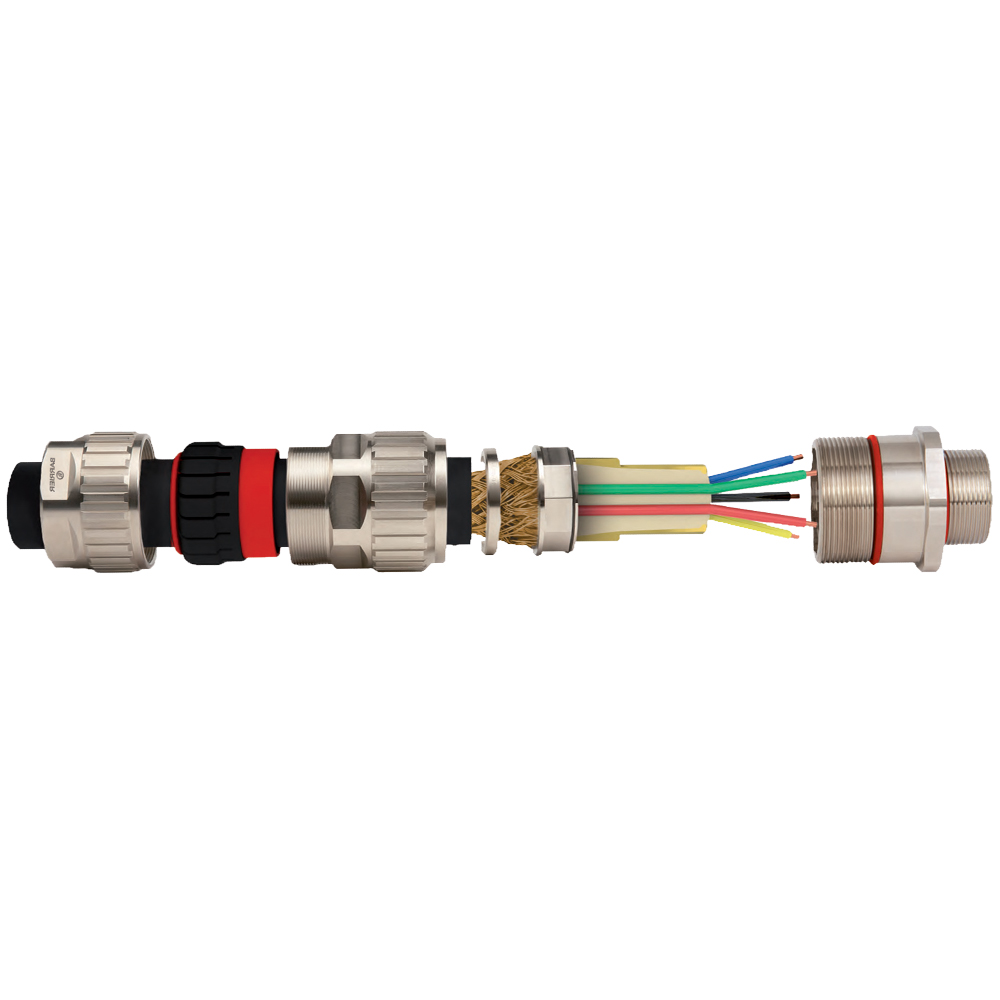

    For use with armored braided marine shipboard cable
    Class I, Division 2, Groups C and D
    Class II, Division 2, Groups F and G
    Class III
    For use with unarmored marine shipboard cable
    UL 2225 3rd Edition UL 514B 6th Edition
    CSA C22.2 No. 174-M1984 CSA C 22.2 No. 18.3

    Materials Part Number Key ( Last 2 letters)
    xxxxx-BB = Raw Brass
    xxxxx-BR = Nickel Plated Brass
    xxxxx-B1 = Brass Gland with Nickel Plated Thread.
    xxxxx-SS = Stainless Steel 316

  • Materials
      Operating Temperature
      -25C° to 85C° (-13°F to 185°F)
      Pressure Rating:
      IP 68 / 5 bar


      Fittings: Raw Brass / Nickel Plated Brass
      Seals: Silicone, VMQ
      O-Rings: None
      Clamping Insert: PA 6
      Armor: Metalic Armor or Screen
      Compound: Epoxy-Putty

      Operating Temperature:
      - 25°C to 85°C (- 13°F to 185°F)

      UL Class 1 & 2, Div 1 rated Armored Cable Glands
