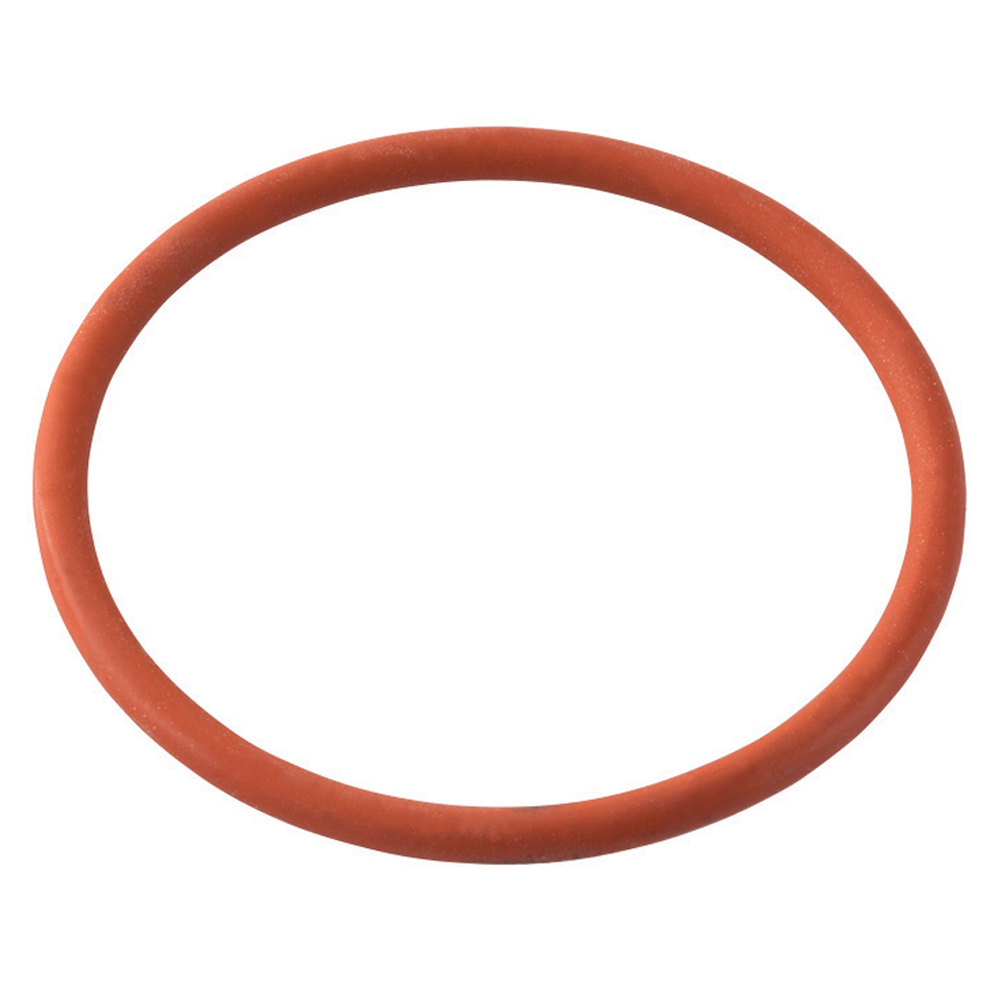

Silicone O-Ring M25 x 1.5


Silicone O-Ring

M25 x 1.5

Sealcon # OM-25-SI
Color Red
Hummel # 1.321.2500.59
Hummel O-Ring-VMQ
Material Silicone

Inner Diameter (D)
.87" (22 mm)
Height (E)
.08" (2 mm)


If NEMA 4x or 6 (European IP 68 - submersible) is required, O-Rings or Seal Rings (ordered separately) should be used when mounting Strain Relief Fittings to a control panel, secured with a locking nut. The Straight Strain Relief fittings feature a molded O-Ring groove. For these fittings, the Buna-N O-Ring is the best solution. The Snap Elbows and some of the Conduit Fittings do not have a recess for an O-Ring. In that case, the Polyethylene Seal Ring would be the best choice, unless the hole can be beveled to accommodate an O-Ring.

Technical Data

Operating Temperature

-60°C to 250°C (-76°F to 482°F)
