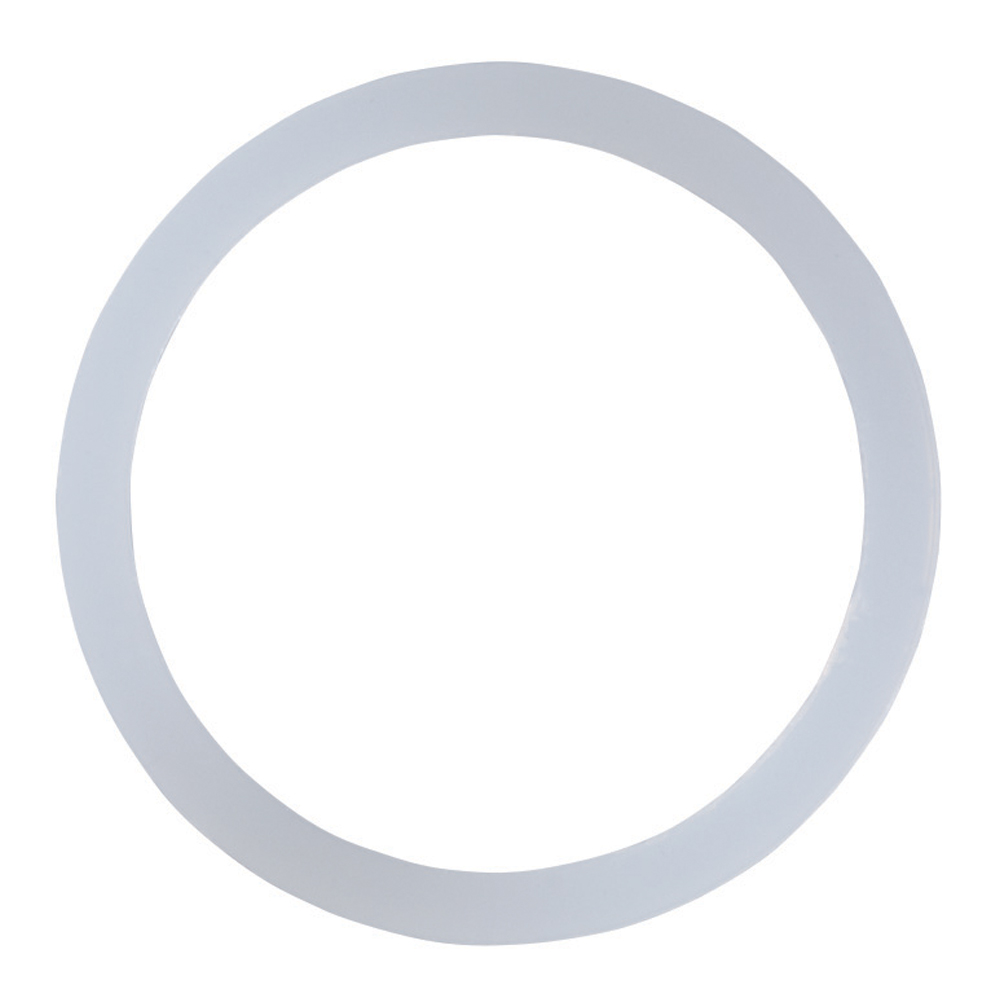

White Polyethylene Seal Ring
M16 x 1.5
Sealcon # SM-16-NY
Color White
Hummel # 1.325.1600.59
Hummel Thread Seal Ring PE
Material Polyethylene
Inner Diameter (A)
.63" (16 mm)
Outer Diameter (B)
.79" (20 mm)
Height (C)
.08" (2 mm)
Features
If NEMA 4x or 6 (European IP 68 - submersible) is required, O-Rings or Seal Rings (ordered separately) should be used when mounting Strain Relief Fittings to a control panel, secured with a locking nut. The Straight Strain Relief fittings feature a molded O-Ring groove. For these fittings, the Buna-N O-Ring is the best solution. The Snap Elbows and some of the Conduit Fittings do not have a recess for an O-Ring. In that case, the Polyethylene Seal Ring would be the best choice, unless the hole can be beveled to accommodate an O-Ring.
Technical Data
Operating Temperature
-30°C to 70°C (-22°F to 158°F)
RoHS Compliance
Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
