S7.556.600.000-H

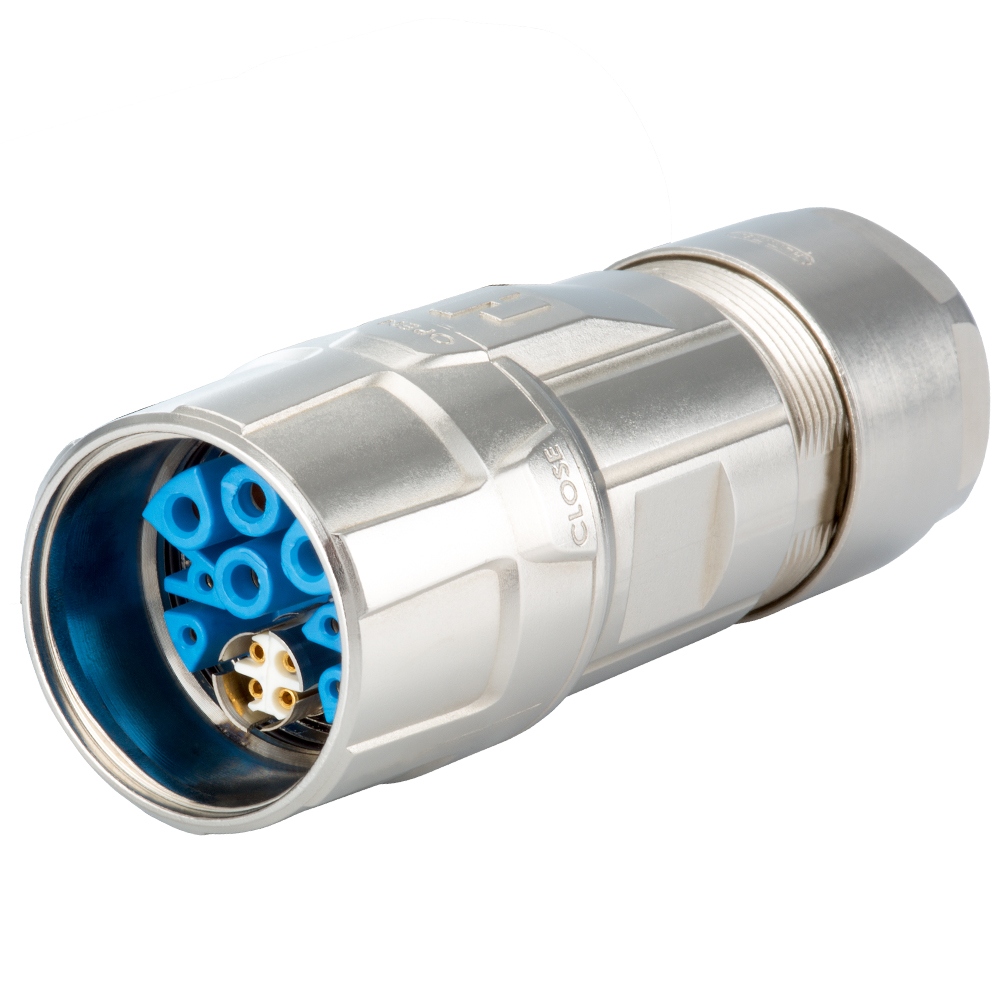

M23 Hybrid Straight Connector

Cable Range: .43" - .67" (11 - 17 mm)

Inserts & Contacts sold separately.

Sealcon # S7.556.600.000-H
(Housing only)
Cable Range .43" - .67" (11 - 17 mm)
Hummel # 7.556.600.000
Hummel Straight Connector, Female Thread, M23 TWILOCK

Technical Data

Mechanical Data

  • Cable OD: .43" - .67" (11 - 17 mm)
Protection: IP 67 / IP 69 K per EN 60 529 (connected)

Operating-Temperature: -40 – 125 °C

Mating cycles: > 1000

for cables mm: 3 – 17

Housing material: Copper-Zinc alloy Die Casting

Housing surface: Nickel plated brass

Inserts: PA 6 PBT UL-94 V0

Contact material: Copper-Zinc alloy

Contact surface: Nickel plated, Gold plated (0,25µm) Nickel

characteristic of connection: Crimp dip-solder (PCB)

Seals / O-Rings: Buna-N standard Viton (FPM)

Downloads

PDF Files


Assembly Instructions

Approvals

Inserts

Insert Number of Poles Required Contacts Electrical Data Add to Quote
S7.084.944.101 Insert 12 Pole 4+4+3+PE Select for Quote
S7.084.944.102 12 pole 4+4+3+PE Select for Quote

Contacts

Contacts Type of Contact Crimp Range Product Number Add to Quote
S7.010.941.001 Crimp Pin 1 mm Machined 0.14 - 1 mm² AWG 26 - AWG 17 S7.010.941.001
S7.010.941.002 Crimp Socket 1 mm Machined 0.14 - 1 mm² AWG 26 - AWG 17 S7.010.941.002
S7.010.942.001 Crimp pin 2mm, machined 0.75 - 2.5 mm² AWG 18 - AWG 14 S7.010.942.001
S7.010.942.002 Crimp Socket 2 mm Machined 0.75 - 2.5 mm² AWG 18 - AWG 14 S7.010.942.002
S7.010.942.011 Crimp Pin 2 mm Machined 2.5 - 4 mm² AWG 14 - AWG 12 S7.010.942.011
S7.010.942.012 Crimp Socket 2 mm Machined 2.5 mm²- 4.0 mm² AWG 14 - AWG 12 S7.010.942.012
S7.010.980.602 Crimp Socket 0.6 mm Machined 0.08 mm²- 0.34 mm² S7.010.980.602
S7.010.980.641 Crimp Pin 0.6 mm Machined 0.08 mm²- 0.34 mm² S7.010.980.641
