M23 Signal Connector
M23 Signal Connector

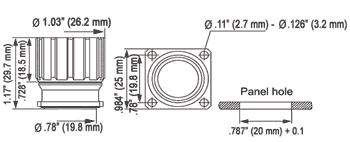

Panel, Female Thread, With Knurled Nut, Without Coding Option
Sealcon M23 Signal Straight Connectors are reliable and universally accepted within the connectivity industry. With many pin-out configurations and housing styles, the M23 signal has an option for your application. Available in many locking styles including standard Threaded screw lock, Twilock, which mates to SpeedTEC® by Intercontec/TE Connectivity. EMI ready options! Available in 6, 7, 9, 12, 16, 17 or 19 pole inserts with signal transmission up to 300 Volts and 20 Amps.
Panel, Female Thread, With Knurled Nut, Without Coding Option
![]() |
![]() |
Part Number (Housing only) |
Type |
---|---|
M23 Signal Connector Panel, Female Thread, With Knurled Nut, Without Coding Option S7.440.000.000 |
Flange: 4 holes .13" (3.2) |
M23 Signal Connector Panel, Female Thread, With Knurled Nut, Without Coding Option S7.444.000.000 |
Flange: 4 holes .11" (2.7 |
Panel, Female Thread, With Knurled Nut, With Coding Option (8x45°)
![]() |
![]() |
Part Number (Housing only) |
Type |
---|---|
M23 Signal Connector Panel, Female Thread, With Knurled Nut, With Coding Option (8x45°) S7.448.000.000 |
Flange: 4 holes .13" (3.2 |
M23 Signal Connector Panel, Female Thread, With Knurled Nut, With Coding Option (8x45°) S7.449.000.000 |
Flange: 4 holes .11" (2.7) |
Panel, Female Thread, With Knurled Nut, Rear Mount
![]() |
![]() |
Part Number (Housing only) |
Type |
---|---|
M23 Signal Connector Panel, Female Thread, With Knurled Nut, Rear Mount S7.459.000.000 |
Flange: 4 threads M3 |
