M40 Power Connector
M40 Power Connector
Straight Connector, Female Thread
M40 Power Circular Connector is built for high power transmission with capabilities up to 600 Volts and 55 Amps. By having specially designed housing, safe electromagnetic compatibility protection is achieved. The durable nickel plated brass housing is perfect for rough industrial environments and for various uses, such as heavy drive applications. EMI ready options from Sealcon.
Straight Connector, Female Thread 2 + 3 + PE
![]() |
![]() |
Part Number (Housing only) |
Type |
---|---|
M40 Power Connector Straight Connector, Female Thread S7.710.623.000 |
.51" - .71" (13 - 18 mm) |
M40 Power Connector Straight Connector, Female Thread S7.710.723.000 |
.67" - .97" (17 - 24 mm) |
M40 Power Connector Straight Connector, Female Thread S7.710.823.000 |
.83" - 1.10" (21 - 28 mm) |
Straight Connector, Female Thread 4 + 3 + PE
![]() |
![]() |
Part Number (Housing only) |
Type |
---|---|
M40 Power Connector Straight Connector, Female Thread S7.710.643.000 |
.51" - .71" (13 - 18 mm) |
M40 Power Straight Connectors: Circular Connectors Female Thread S7.710.743.000 |
.67" - .97" (17 - 24 mm) |
M40 Power Connector Straight Connector, Female Thread S7.710.843.000 |
.83" - 1.10" (21 - 28 mm) |
Straight Connector, Female Thread 2 + 3 + PE (TWILOCK-S)
![]() |
![]() |
Part Number (Housing only) |
Type |
---|---|
M40 Power Straight Connector EMI Female Thread TWILOCK-S S7.716.623.00S |
.51" - .71" (13 - 18 mm) |
M40 Power Straight Connector EMI Female Thread TWILOCK-S S7.716.723.00S |
.67" - .97" (17 - 24 mm) |
M40 Power Straight Connector EMI Female Thread TWILOCK-S S7.716.823.00S |
.83" - 1.10" (21 - 28 mm) |

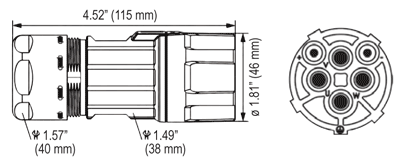

Straight Connector, Female Thread 4 + 3 + PE (TWILOCK-S)
![]() |
![]() |
Part Number (Housing only) |
Type |
---|---|
M40 Power Straight Connector EMI Female Thread TWILOCK-S S7.716.643.00S |
.51" - .71" (13 - 18 mm) |
M40 Power Straight Connector EMI Female Thread TWILOCK-S S7.716.743.00S |
.67" - .97" (17 - 24 mm) |
M40 Power Straight Connector EMI Female Thread TWILOCK-S S7.716.843.00S |
.83" - 1.10" (21 - 28 mm) |
