Nickel Plated Brass Elongated Thread Strain Relief Fittings Metric

CD22DR-BR

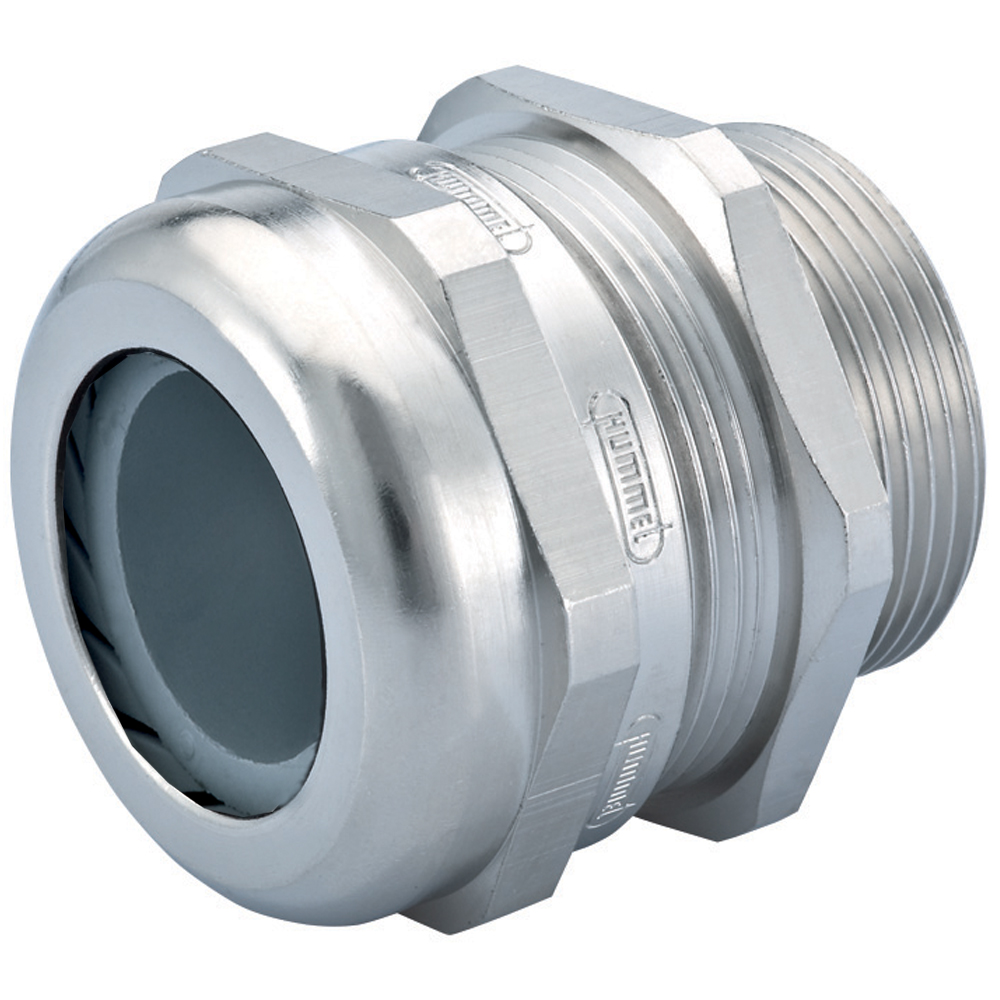

Nickel Plated Brass M20 x 1.5 Elongated Fitting

Thread Type: M20 x 1.5

Locking Nut Sold Separately

Sealcon # CD22DR-BR
Cable Range .28" - .47" (7 - 12 mm)
Color Nickel
Hummel # 1.609.2016.31
Hummel
Material Nickel Plated Brass

Hole Diameter (A)
.79" (20 mm)
Body Length (B)
.94" (24 mm)
Thread Length (D)
.39" (10 mm)
Wrench Flat (F1/F)
.94" (24 mm)

Suggested Clearance Hole for Non-Threaded Mounting

Features

Liquid Tight - Submersible to 300 ft. - NEMA 4x & 6 (IP68 / IP 69 K) Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar) Flame protected - V0 Rated according to UL 94 Halogen- and Phosphorous free materials Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm) Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil. Durable - Rugged Construction Environmentally compliant - RoHS & Deca BDE This Nickel Plated Brass Strain Relief with Elongated Metric M20 x 1.5 Thread will provide your application with a product made of exceptional quality. Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts. The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it. Kinking and chafing of the cable is eliminated with use of the Flex Nut.


This Nickel Plated Brass Strain Relief with elongated M20 x 1.5 Thread will provide your application with a product made of exceptional quality.

Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.

Technical Data

Pressure Rating

150 PSIG (10 BAR) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K

Materials

  • Fittings: Nickel Plated Brass
  • Form Seal:
  • Optional O-Ring: Buna-N, FPM or Silicone
  • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Pressure Rating: 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K Materials: Fittings: Nickel Plated Brass Spring (Flex Extension): Stainless Steel Form Seal: Buna-N Splined Bushing: Nylon 6/6 O-Ring: Buna-N (Viton® or Silicone optional) Optional Seal Ring: Polyethylene or Fiber-reinforced Plastic Operating Temperature: - 40°C to 100°C (- 40°F to 212°F) Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. *Sizes 3/8”NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
