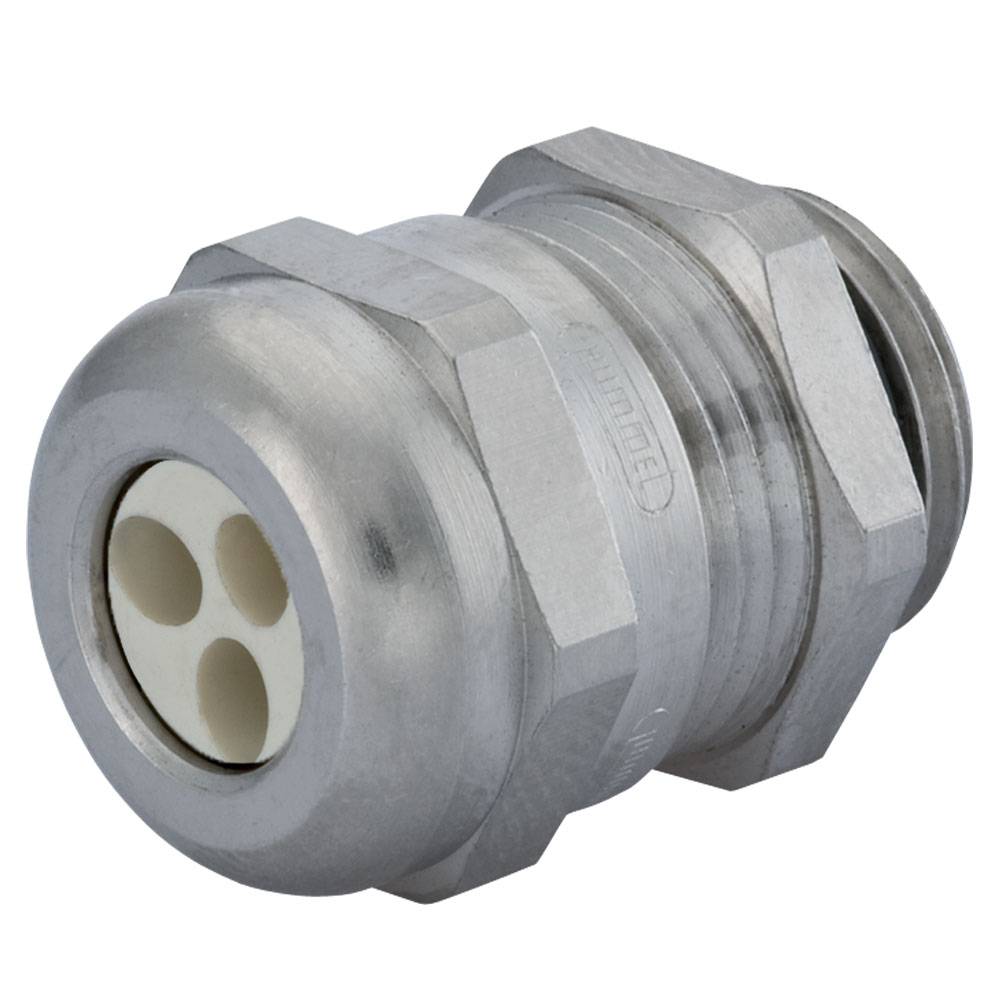

Nickel Plated Brass Multi-Hole Strain Relief Fittings PG


Nickel Plated Brass Standard PG 21

Thread Type: PG 21

Locking Nut Sold Separately

Sealcon # CD21A2-BR
Color Nickel
No. of Holes 3
Diameter of Holes .28" (7 mm)
Insert Only 1.089.2101.19
Hummel # 1.697.2101.01
Material Nickel Plated Brass

Body Length (B)
.94" (24 mm)
Thread Length (D)
.28" (7 mm)
Wrench Flat (F1/F)
1.18" (30 mm)


  • Flame protected - V0 Rated according to UL 94
  • Halogen- and Phosphorous free materials
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE

This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.

Technical Data

Pressure Rating

IP 65 / IP 68 10 bar possible with ideal fit


  • Fittings: Nickel Plated Brass
  • Form Seal: Elastomer
  • Optional O-Ring: Buna-N, FPM or Silicone
  • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic

Operating Temperature

-40°C to 100°C (-40°F to 212°F)
