CF09A6-BR, Nickel Plated Brass, Multi-Hole, PG 9, Strain Relief, Cord Grips, Cable Glands, Sealcon, Hummel

Strain Relief Fittings
Features
Technical Data
Downloads
Approvals
Accessories

maximize

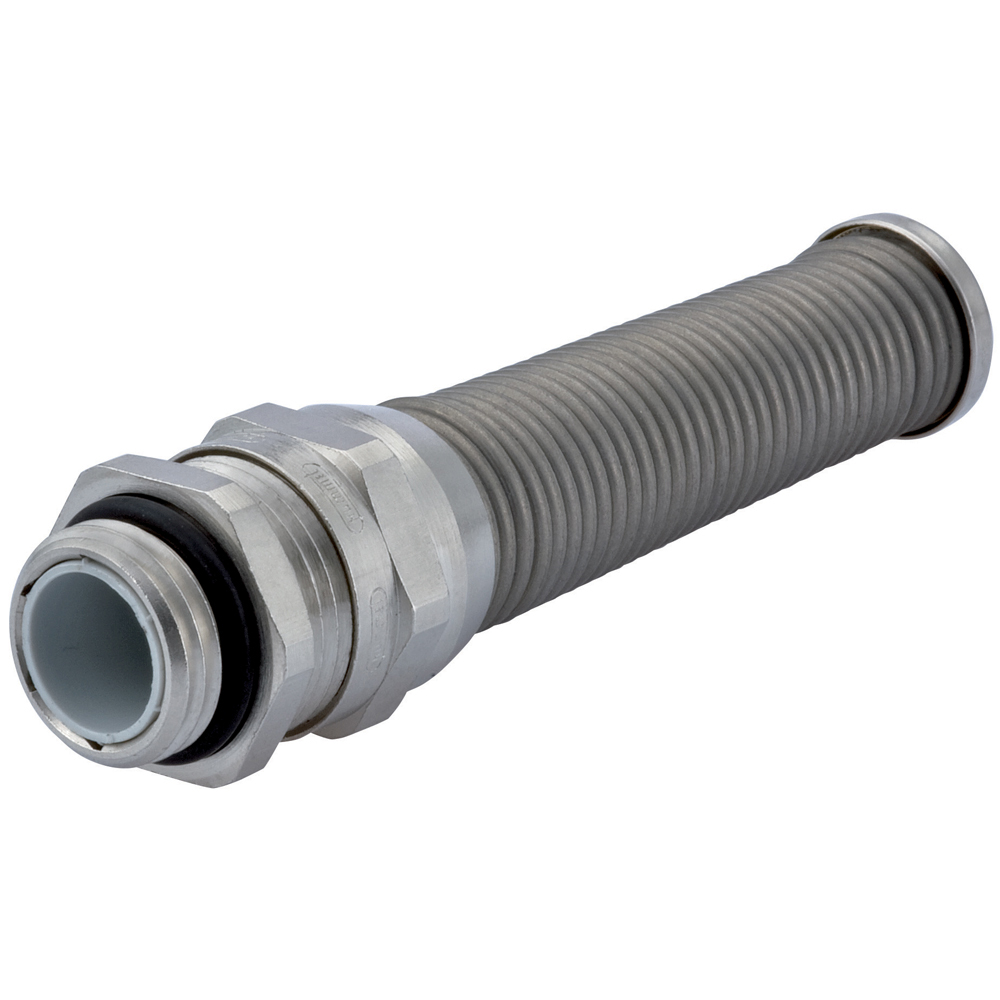

Nickel Plated Brass Standard PG 9

Thread Type: PG 9

Locking Nut Sold Separately

Sealcon # CF09A6-BR

Color Nickel

No. of Holes 6

Diameter of Holes .06" (1.4)

Insert Only 1.089.0905.19

Hummel # *Custom

Hummel HSK-K-Flex

Material Nickel Plated Brass

Body Length (C)

.87" (22 mm)

Thread Length (D)

.59" (15 mm)

Wrench Flat (F1/F)

.75" (19 mm) / .87" (22 mm)

Features

Liquid Tight - Submersible to 300 ft. - Type Nema 4x & 6 (IP68 / IP 69 K)
Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar)
Flame protected - V0 Rated according to UL 94
Halogen- and Phosphorous free materials
Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
Durable - Rugged Construction
Environmentally compliant - RoHS & Deca BDE

This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.
