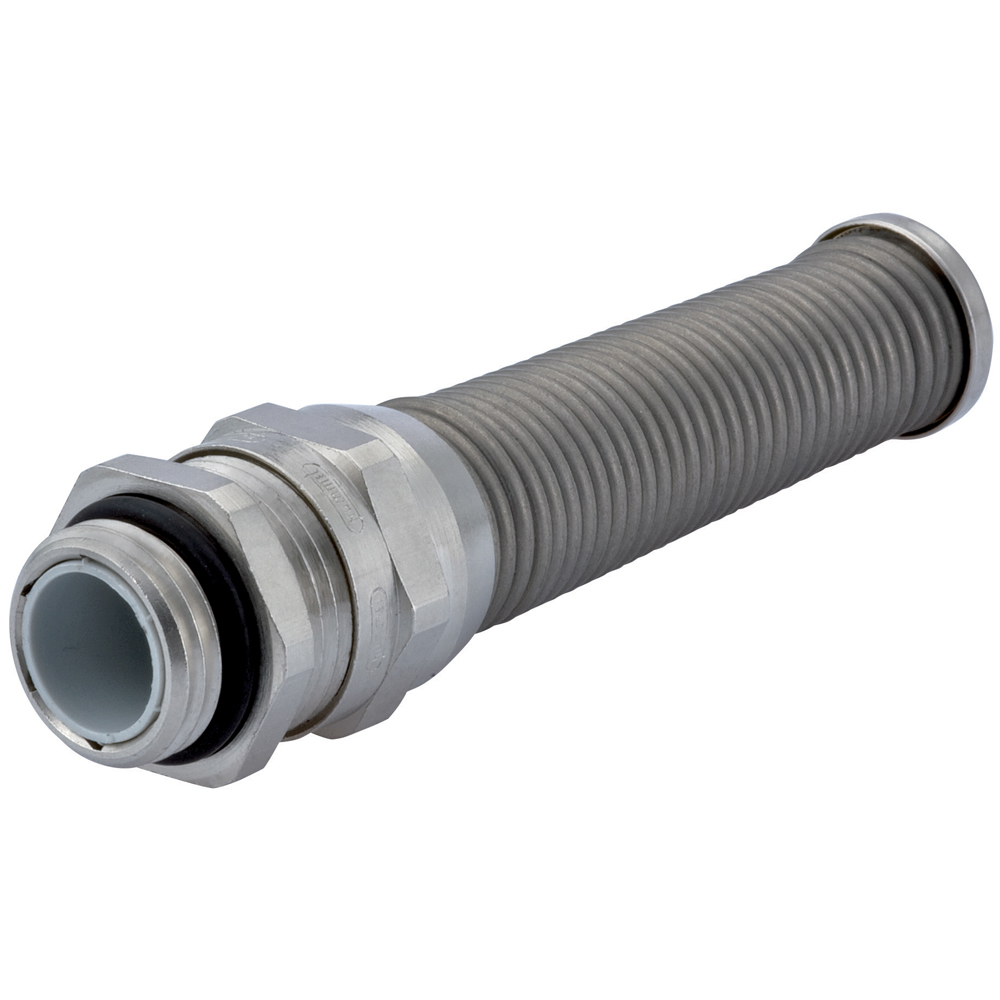

PG 9 Nickel Plated Brass Multi-Hole (Solid Plug) Flex Cable Gland | Cord Grip | Strain Relief CF09AP-BR


Nickel Plated Brass Standard PG 9

Thread Type: PG 9

Locking Nut Sold Separately

Sealcon # CF09AP-BR
Color Nickel
No. of Holes Solid Plug
Insert Only 1.089.0999.19
Hummel # *Custom
Hummel HSK-K-Flex
Material Nickel Plated Brass

Body Length (C)
.87" (22 mm)
Thread Length (D)
.59" (15 mm)
Wrench Flat (F1/F)
.75" (19 mm) / .87" (22 mm)


Liquid Tight - Submersible to 300 ft. - Type Nema 4x & 6 (IP68 / IP 69 K) Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar) Flame protected - V0 Rated according to UL 94 Halogen- and Phosphorous free materials Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm) Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil. Durable - Rugged Construction Environmentally compliant - RoHS & Deca BDE
This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Solid Plug will provide your application with a product made of exceptional quality.

Technical Data

Pressure Rating

150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K


  • Fittings: Nickel Plated Brass
  • Form Seal: Elastomer
  • Optional O-Ring: Buna-N, FPM or Silicone
  • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic


IP 65/IP 68 possible with ideal fit, only with optional O-Ring

Operating Temperature

-40°C to 100°C (-40°F to 212°F)
