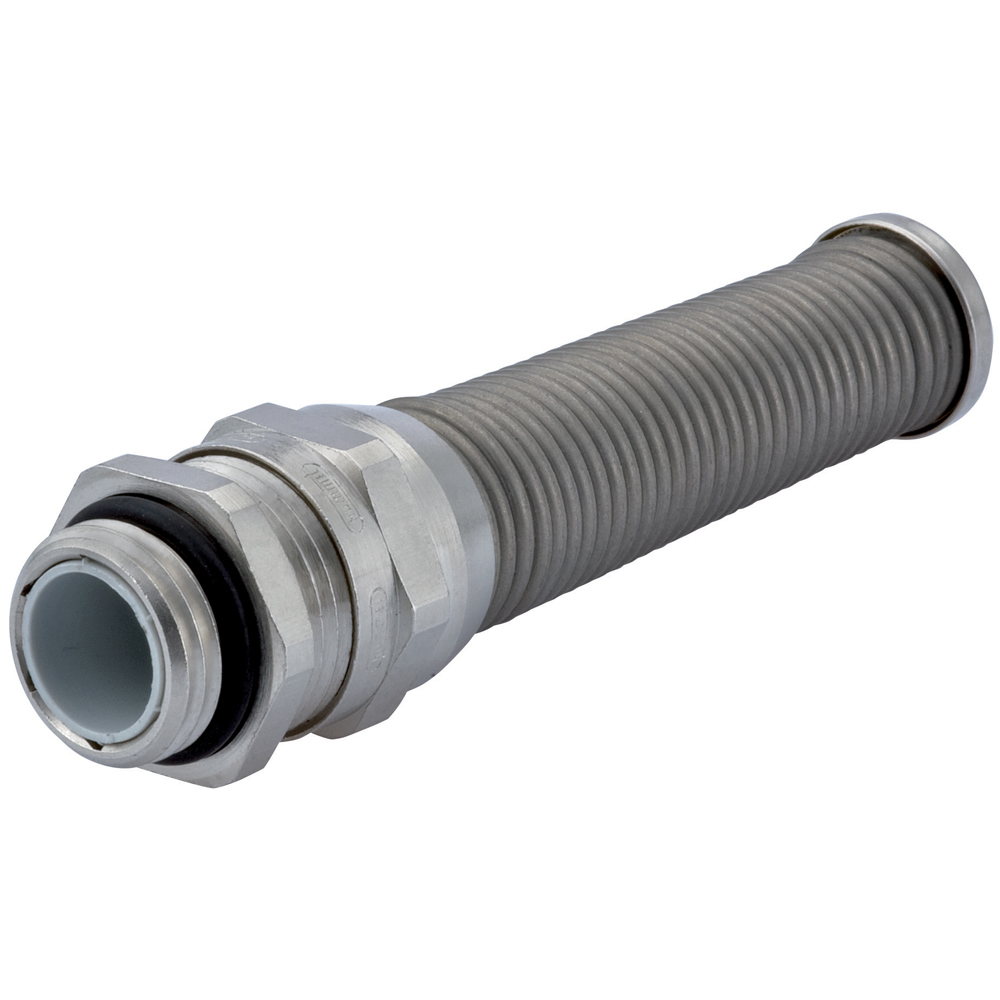

Nickel Plated Brass Standard PG 21
Thread Type: PG 21
Locking Nut Sold Separately
Sealcon # CF21AP-BR
Color Nickel
No. of Holes Solid Plug
Insert Only 1.089.2199.19
Hummel # *Custom
Hummel HSK-K-Flex
Material Nickel Plated Brass
Body Length (C)
.87" (22 mm)
Thread Length (D)
.59" (15 mm)
Wrench Flat (F1/F)
.75" (19 mm) / .87" (22 mm)
Features
- Liquid Tight - Submersible to 300 ft. - Type Nema 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar)
- Flame protected - V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
- Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable - Rugged Construction
- Environmentally compliant - RoHS & Deca BDE
This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.
Technical Data
Pressure Rating
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K
Materials
- Fittings: Nickel Plated Brass
- Form Seal: Elastomer
- Optional O-Ring: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Protection
IP 65/IP 68 possible with ideal fit, only with optional O-Ring
Operating Temperature
-40°C to 100°C (-40°F to 212°F)
Approvals
RoHS Compliance
Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
Certified European Approval
Canadian Standard Association
Registered Underwriters Laboratories
German Lloyd
EAC
V0 UL94 Rated / Approved
