Features

• Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
• Highest Pressure Rating – Patented form seal guarantees 150 psig
  (10 bar)
• Flame protected – V0 Rated according to UL 94
• Halogen- and Phosphorous free materials
• Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
• Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
• Durable – Rugged Construction
• Environmentally compliant – RoHS & Deca BDE

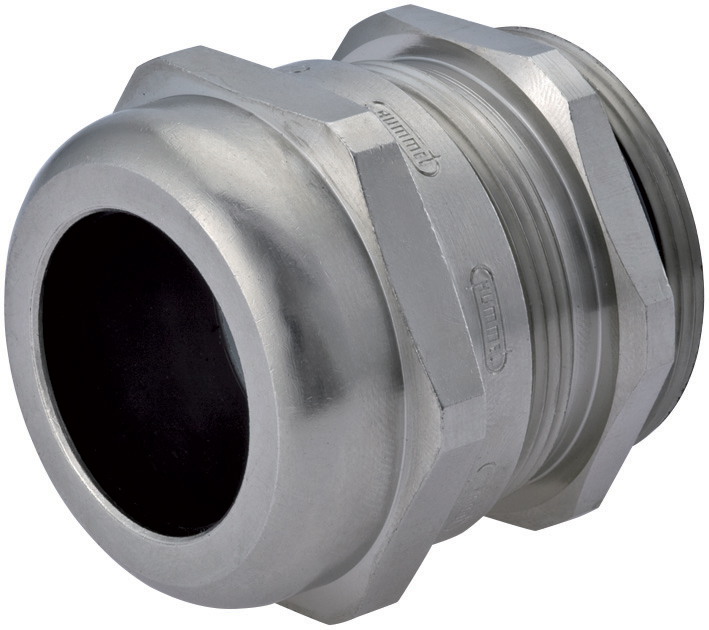

This Nickel Plated Brass Strain Relief with PG 7 / 1/4″ NPT Thread will provide your application with a product made of exceptional quality.

Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.

• Fittings: Nickel Plated Brass
• Form Seal: Buna-N
• Optional ORing: Buna-N, FKM or Silicone
• Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic

APPROVALS

• Restriction of Hazardous Substances in Electrical and Electronic Equipment
• Deca-Bromo-Diphenyl-Ether Compliance
• Registration, Evaluation, Authorization and Restriction of Chemicals
• Waste Electrical and Electronic Equipment Directive
• CSA approval CSA (Canadian Standard Association)
• EAC
• UR (Recognized Underwriters Laboratories)
• CE approval CE (Certified European Approval)
• German Lloyd
