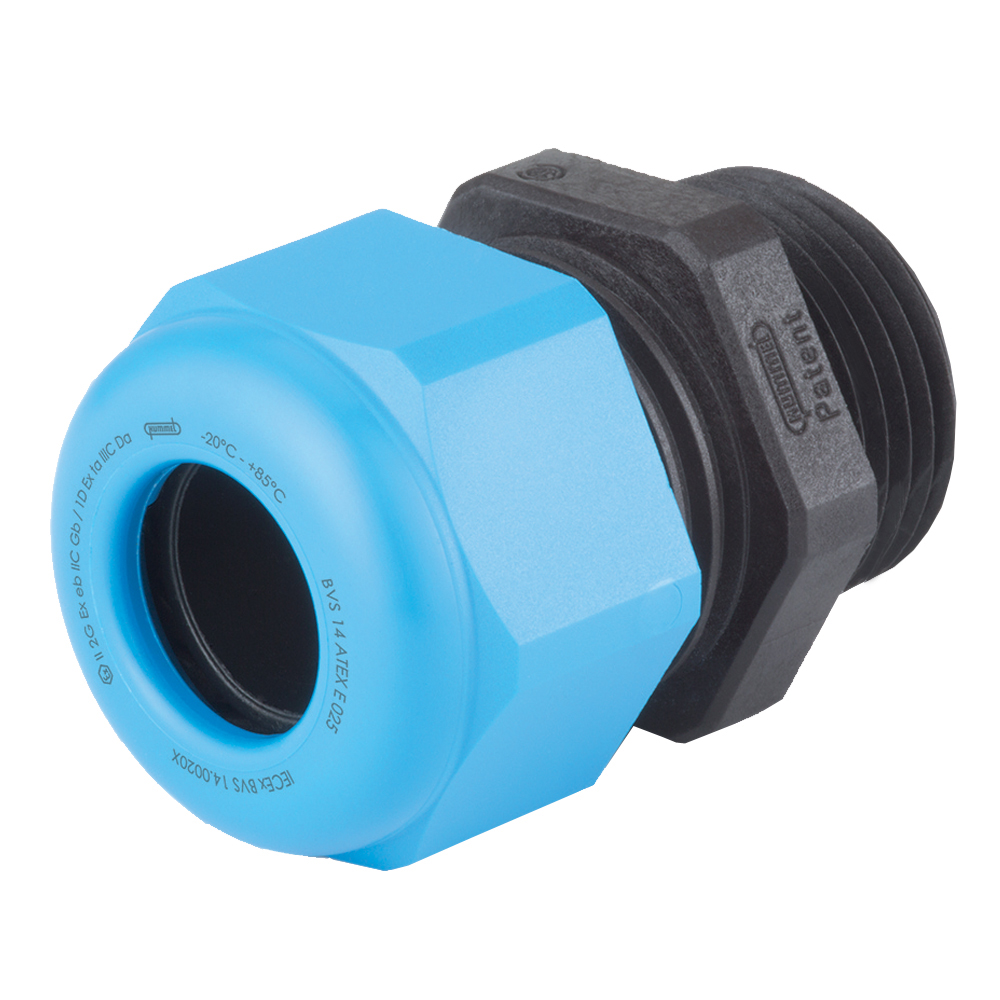

M16 x 1.5 Blue/Black Nylon High Impact / DIV Rated Fiber Reinforced Elongated Thread Standard Cable Gland | Cord Grip | Strain Relief CD17DA-BXI


Nylon BXI Elongated Active Relief Fitting M16

Locking Nut Sold Separately

Sealcon # CD17DA-BXI
Cable Range .20" - .39" (5 - 10 mm)
Color Blue
Hummel # 1.292.1612.30
Hummel HSK-K-Ex-Active
Material Fiber Reinforced Nylon

Hole Diameter (A)
.63" (16 mm)
Body Length (B)
.98" (25 mm)
Thread Length (D)
.59" (15 mm)
Wrench Flat (F1/F)
.87" (22 mm)

Suggested Clearance Hole for Non-Threaded Mounting


The HSK-K-Ex-Active has been developed to meet the stringent requirements of EN 60079-0 : 2012. IECEx Certificate of Conformity: IECEx BVS 14.0020X. This non-metallic solution for non-armored cables is designed for applications in electrical equipment and potentially explosive atmospheres.

  • Machine, apparatus and plant equipment

  • Measuring control and feedback systems

  • Potentially Explosive Atmospheres

  • Electrical Equipment

  • Industrial installations

and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical.

Technical Data

Operating Temperature

-20°C to 85°C (-4°F to 185°F)

Pressure Rating: 150 PSIG (10 BAR) Type Nema 6 - IP 68
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable
RoHS & Deca BDE Compliant
