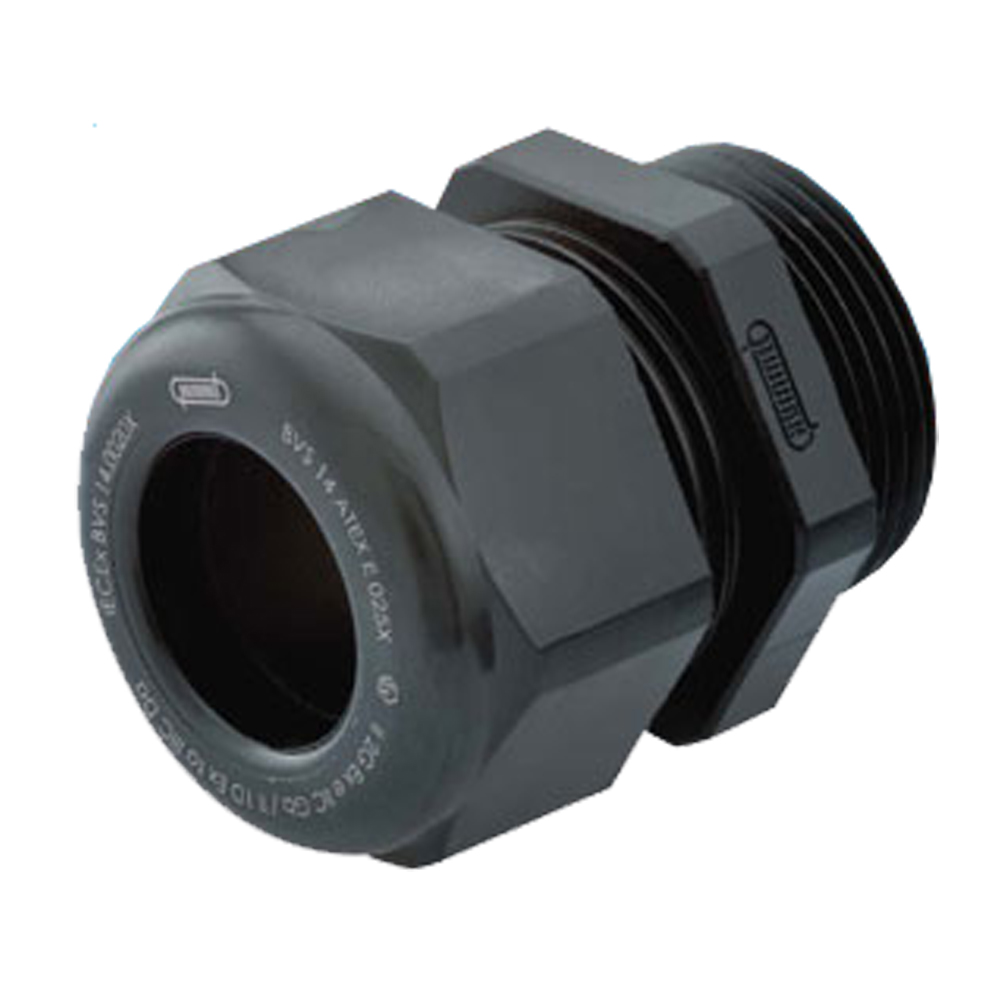

M63 x 1.5 Black Nylon High Impact / DIV Rated Fiber Reinforced Elongated Thread Reduced Cable Gland | Cord Grip | Strain Relief CD63DR-BXA

Sealcon #: CD63DR-BXA
Cable Range: 1.14" - 1.38" (29 to 35 mm)
Color: Black
Material: Fiber Reinforced Nylon
Hummel: HSK-K-Ex-Active
Hummel #: 1.292.6301.31

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)2.48" (63 mm)
Body Length (B)1.93" (49 mm)
Thread Length (D)0.71" (18 mm)
Wrench Flat (F1)2.56" (65 mm)
Wrench Flat (F)2.68" (68 mm)
Suggested Clearance Hole for Non-Threaded Mounting
  • Features

    The HSK-K-Ex-Active has been developed to meet the stringent requirements of EN 60079-0 : 2012. IECEx Certificate of Conformity: IECEx BVS 14.0020X. This non-metallic solution for non-armored cables is designed for applications in electrical equipment and potentially explosive atmospheres.

    • Machine, apparatus and plant equipment


    • Measuring control and feedback systems


    • Potentially Explosive Atmospheres


    • Electrical Equipment


    • Industrial installations



    and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical.



  • Materials
      Operating Temperature
      -20C° to 85C° (-4°F to 185°F)
      Pressure Rating: 150 PSIG (10 BAR) Type Nema 6 - IP 68
      Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
      * Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
      High Impact Resistance: 7 Joule
      Latest ATEX/IECEx & CSA Standards
      150 PSIG (10 bar) liquid tight rating
      Concentric O-Ring Groove
      UL f1 (746C) UV/Ozone Stable
      RoHS & Deca BDE Compliant
