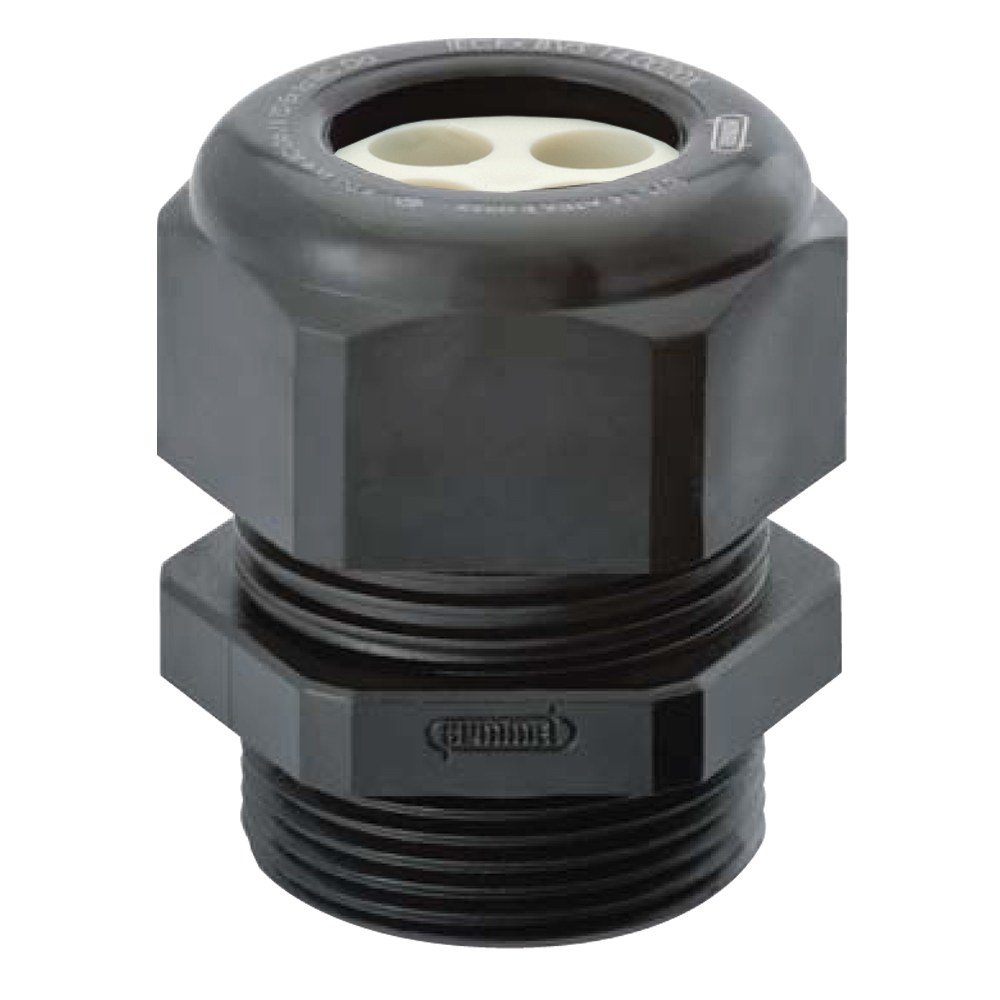

Black Fiberglass reinforced polyamide Standard Strain Relief Fitting M20 x 1.5
Thread Type: M20 x 1.5
Locking Nut Sold Separately
Sealcon # CD20M4-BXA
Color Black
No. of Holes 2
Diameter of Holes .2" (5 mm)
Insert Only 1.089.1303.19
Hummel # 1.581.2003.51
Hummel HSK-K-Multi
Material Fiberglass reinforced polyamide
Body Length (B)
1.06" (27 mm)
Thread Length (D)
.35" (9 mm)
Wrench Flat (F1/F)
.94" (24 mm)
Features
- Liquid Tight - Submersible to 300 ft. - Type Nema 4x & 6 (IP68 )
- Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar)
- Safety - Ratchet to prevent Dome from coming loose under vibration
- Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
- Durable - Rugged Construction
- Environmentally compliant - RoHS & Deca BDE
This Nylon Strain Relief (Cable Gland) with M20 x 1.5 Thread will provide your application with a product made of exceptional quality
The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
Technical Data
Pressure Rating
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68
Materials
- Fittings: Fiberglass reinforced polyamid
- Form Seal: NBR
- Optional O-Ring: Buna-N, FPM or Silicone
- Optional Seal Ring: NBR
Protection
IP 65/IP 68 possible with ideal fit, only with optional O-Ring
Operating Temperature
-40°C to 100°C (-40°F to 212°F)
Pressure Rating:
150 PSIG (10 BAR) Type Nema 6 - IP 68
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable
RoHS & Deca BDE Compliant
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable
RoHS & Deca BDE Compliant
Approvals
RoHS Compliance
Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
Certified European Approval
Canadian Standard Association
Registered Underwriters Laboratories
German Lloyd
EAC
V0 UL94 Rated / Approved- Zone 22 = 3D by ATEX = Dc by IEC
