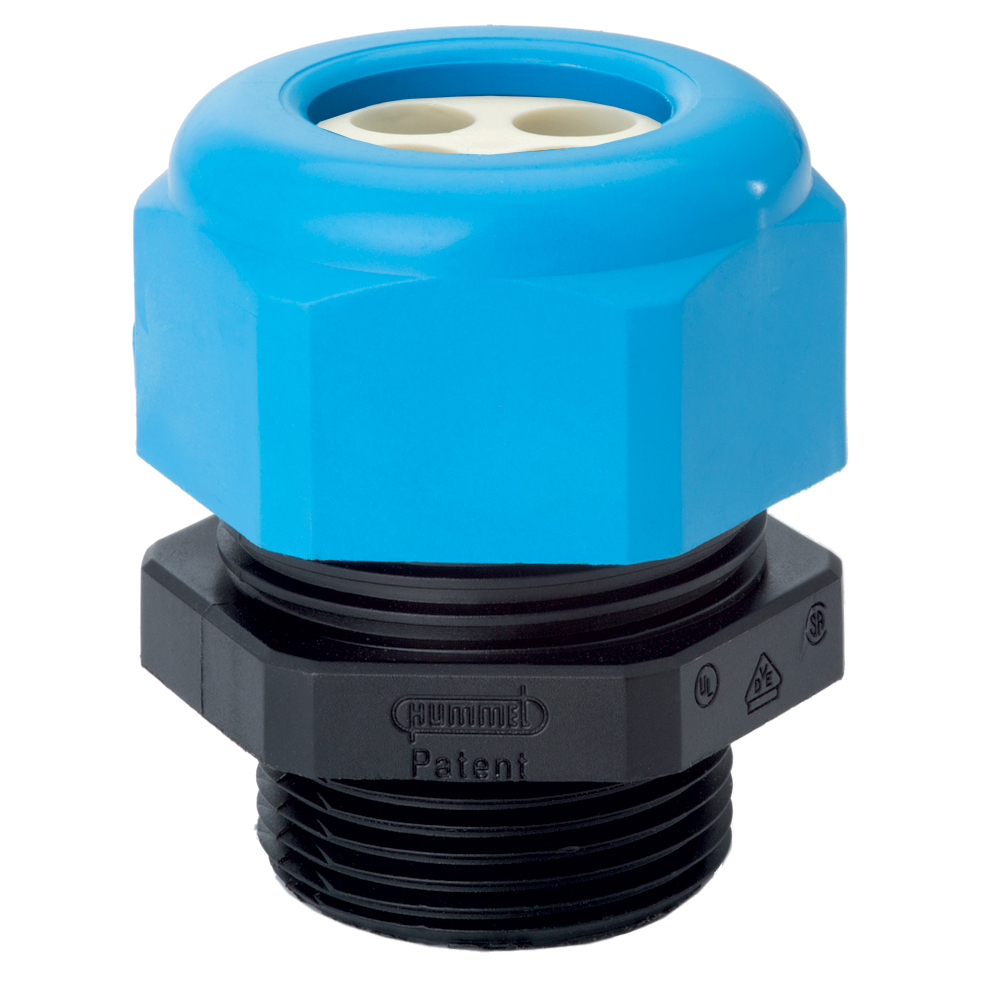

M20 x 1.5 Blue/Black Nylon High Impact / DIV Rated Fiber Reinforced Multi-Hole (2 hole) Dome Cable Gland | Cord Grip | Strain Relief CD20M4-BXI

Sealcon #: CD20M4-BXI

Color: Blue

Material: Fiberglass reinforced polyamide

Number of Holes: 2

Diameter of Holes: 0.2" (5 mm)

Insert Part Number: 1.089.1303.19

Hummel: HSK-K-Multi-Ex Active

Hummel #: 1.581.2003.52

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

Body Length (B)	1.06" (27 mm)
Thread Length (D)	0.35" (9 mm)
Wrench Flat (F1)	0.94" (24 mm)

PDF DOWNLOADS

Data Sheet Assembly Instructions

Features
- Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 )
- Highest Pressure Rating – Patented form seal guarantees 150 psig
  (10 bar)
- Safety – Ratchet to prevent Dome from coming loose under vibration
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
This Nylon Strain Relief (Cable Gland) with M20 x 1.5 Thread will provide your application with a product made of exceptional quality

The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
Pressure Rating
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68
Materials
- Fittings: Fiberglass reinforced polyamid
- Form Seal: NBR
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: NBR
Operating Temperature
-20C° to 85C° (-4°F to 185°F)
Pressure Rating: 150 PSIG (10 BAR) Type Nema 6 - IP 68
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable
RoHS & Deca BDE Compliant
