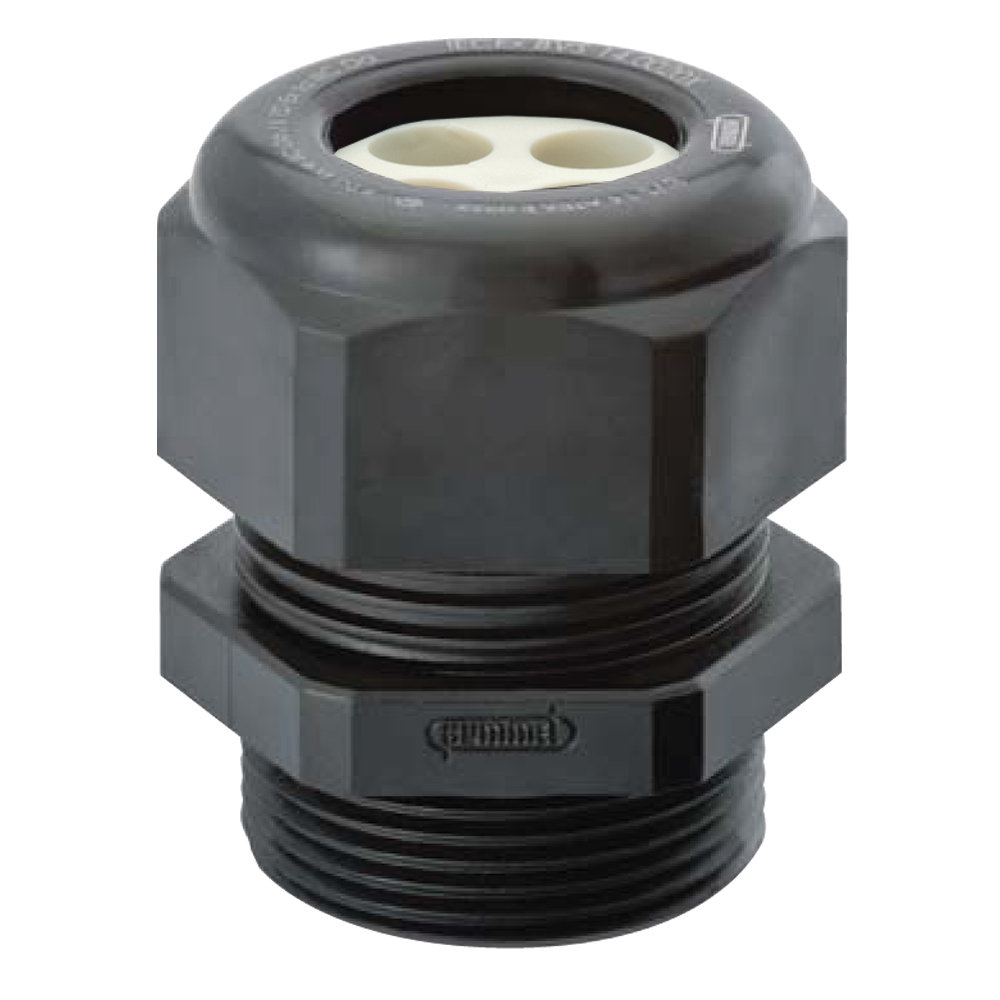

High Impact Metric Multi-Hole Strain Relief Fitting

CD40M2-BXA

Black Fiberglass reinforced polyamide Standard Strain Relief Fitting M40 x 1.5

Thread Type: M40 x 1.5

Locking Nut Sold Separately

Sealcon # CD40M2-BXA
Color Black
No. of Holes 7
Diameter of Holes .35" (9 mm)
Insert Only 1.089.3601.19
Hummel # 1.581.4001.51
Hummel HSK-K-Multi
Material Fiberglass reinforced polyamide

Body Length (B)
1.89" (48 mm)
Thread Length (D)
.51" (13 mm)
Wrench Flat (F1/F)
2.09" (53 mm)

Features

  • Liquid Tight - Submersible to 300 ft. - NEMA 4x & 6 (IP68 )
  • Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar)
  • Safety - Ratchet to prevent Dome from coming loose under vibration
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE


This Nylon Strain Relief (Cable Gland) with M40 x 1.5 Thread will provide your application with a product made of exceptional quality

The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

Technical Data

Pressure Rating

150 PSIG (10 BAR) NEMA 4x & 6 (Submersible) - IP 68

Materials

  • Fittings: Fiberglass reinforced polyamid
  • Form Seal: NBR
  • Optional O-Ring: Buna-N, FPM or Silicone
  • Optional Seal Ring: NBR

Protection

IP 68 with O-Ring

Operating Temperature

-20°C to 85°C (-4°F to 185°F)

Pressure Rating: 150 PSIG (10 BAR) NEMA 6 - IP 68
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable
RoHS & Deca BDE Compliant
