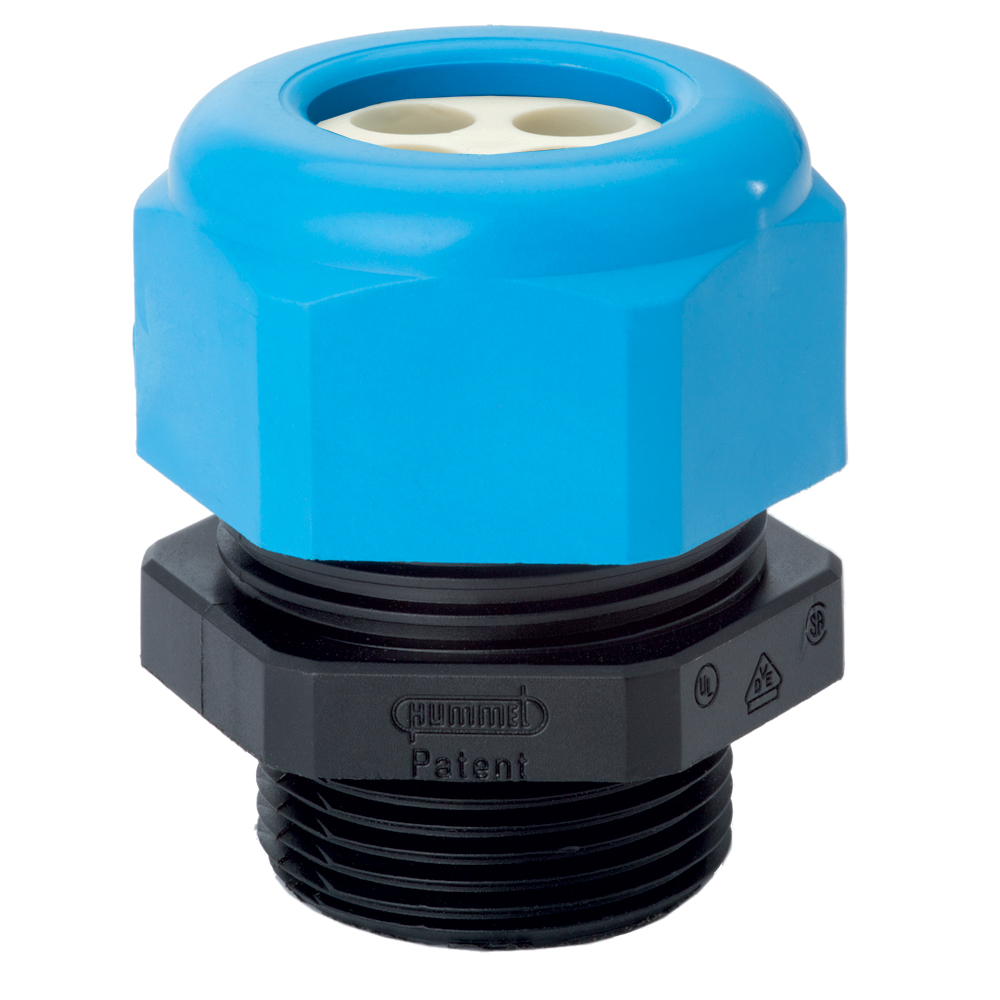

3/8″ NPT Blue/Black Nylon High Impact / DIV Rated Fiber Reinforced Multi-Hole (2 hole) Dome Cable Gland | Cord Grip | Strain Relief CD09N2-BXI

Sealcon #: CD09N2-BXI
Color: Blue
Material: Fiberglass reinforced polyamide
Number of Holes: 2
Diameter of Holes: 0.12" (3 mm)
Insert Part Number: 1.089.0901.19
Hummel: HSK-K-MULTI
Hummel #: 1.581.3801.72

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Body Length (B)0.87" (22 mm)
Thread Length (D)0.59" (15 mm)
Wrench Flat (F1)0.75" (19 mm)
Wrench Flat (F)0.87" (22 mm)
  • Features

    • Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
    • Highest Pressure Rating – Patented form seal guarantees 150 psig
      (10 bar)
    • Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
    • Safety – Ratchet to prevent Dome from coming loose under vibration
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This Fiberglass reinforced polyamide Strain Relief (Cable Gland) with 3/8″ NPT Thread will provide your application with a product made of exceptional quality

    The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.



  • Pressure Rating
    150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K
    Materials
    • Fittings: Fiberglass reinforced polyamid
    • Form Seal: Elastomer
    • Optional ORing: Buna-N, FPM or Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Operating Temperature
    -40C° to 100C° (-40°F to 212°F)

    Fiberglass reinforced polyamide 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.

    UL F1 UV Stable Rating for outdoor applications (Black Fiberglass reinforced polyamide version only).

    *Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Fiberglass reinforced polyamide and Nickel Plated Brass have UR (ONLY)
