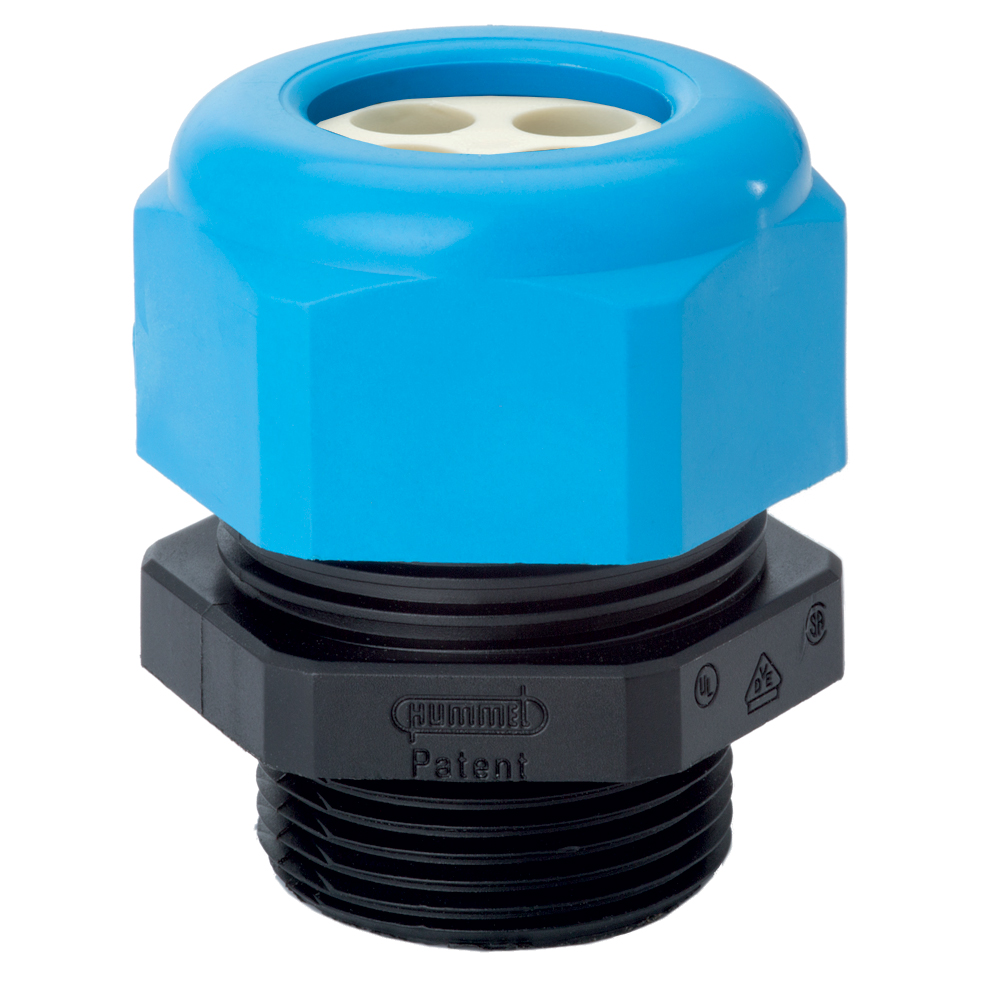

1-1/4" NPT Blue/Black Nylon High Impact / DIV Rated Fiber Reinforced Multi-Hole (Solid Plug) Dome Cable Gland | Cord Grip | Strain Relief CD29LP-BXI


Blue Fiberglass reinforced polyamide Standard Strain Relief Fitting 1-1/4" NPT

Thread Type: 1-1/4" NPT

Locking Nut Sold Separately

Sealcon # CD29LP-BXI
Cable Range .71" - .98" (18 - 25 mm)
Color Blue
No. of Holes Solid Plug
Insert Only 1.089.2999.19
Hummel # 1.581.5499.72
Material Fiberglass reinforced polyamide

Body Length (B)
1.89" (48 mm)
Thread Length (D)
.79" (20 mm)
Wrench Flat (F1/F)
2.09" (53 mm)


  • Liquid Tight - Submersible to 300 ft. - Type Nema 4x & 6 (IP68 / IP 69 K)
  • Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar)
  • Flame protected - V0 Rated according to UL 94Halogen- and Phosphorous free materials
  • Safety - Ratchet to prevent Dome from coming loose under vibration
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE

This Fiberglass reinforced polyamide Strain Relief (Cable Gland) with 1-1/2" NPT Thread will provide your application with a product made of exceptional quality

The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

Technical Data

Pressure Rating

150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K


  • Fittings: Fiberglass reinforced polyamid
  • Form Seal: Elastomer
  • Optional O-Ring: Buna-N, FPM or Silicone
  • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic


IP 65/IP 68 possible with ideal fit, only with optional O-Ring

Operating Temperature

-40°C to 100°C (-40°F to 212°F)

Fiberglass reinforced polyamide 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.

UL F1 UV Stable Rating for outdoor applications (Black Fiberglass reinforced polyamide version only).

*Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Fiberglass reinforced polyamide and Nickel Plated Brass have UR (ONLY)
