BXA/BXI High Impact Class / DIV Rated Strain Relief Metric Thread Cord Grip
Protection: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da / Class I Div2 Groups A, B, C, D / Class II Div 1 Groups E, F, G
| Dome Fittings | |||
 |
 |
||
| Part Numbers | Cable Range | Thread Type | |
|---|---|---|---|

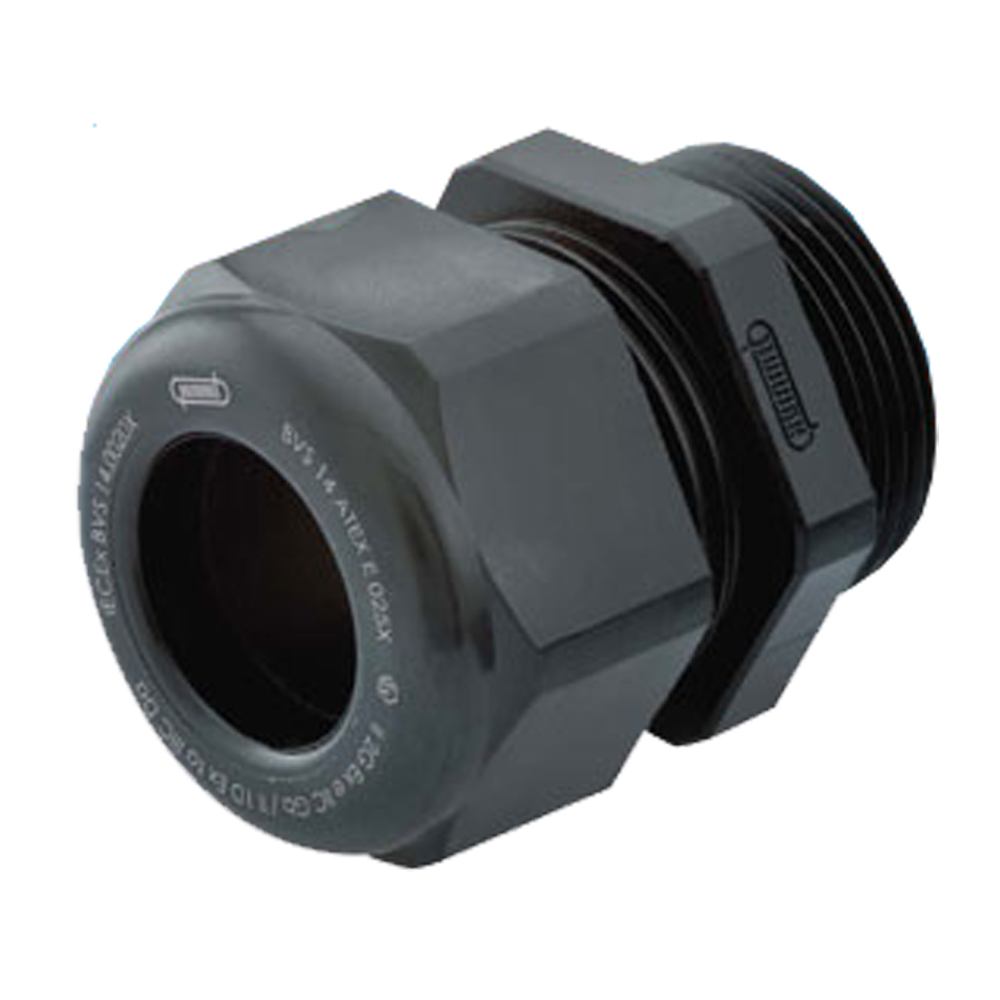

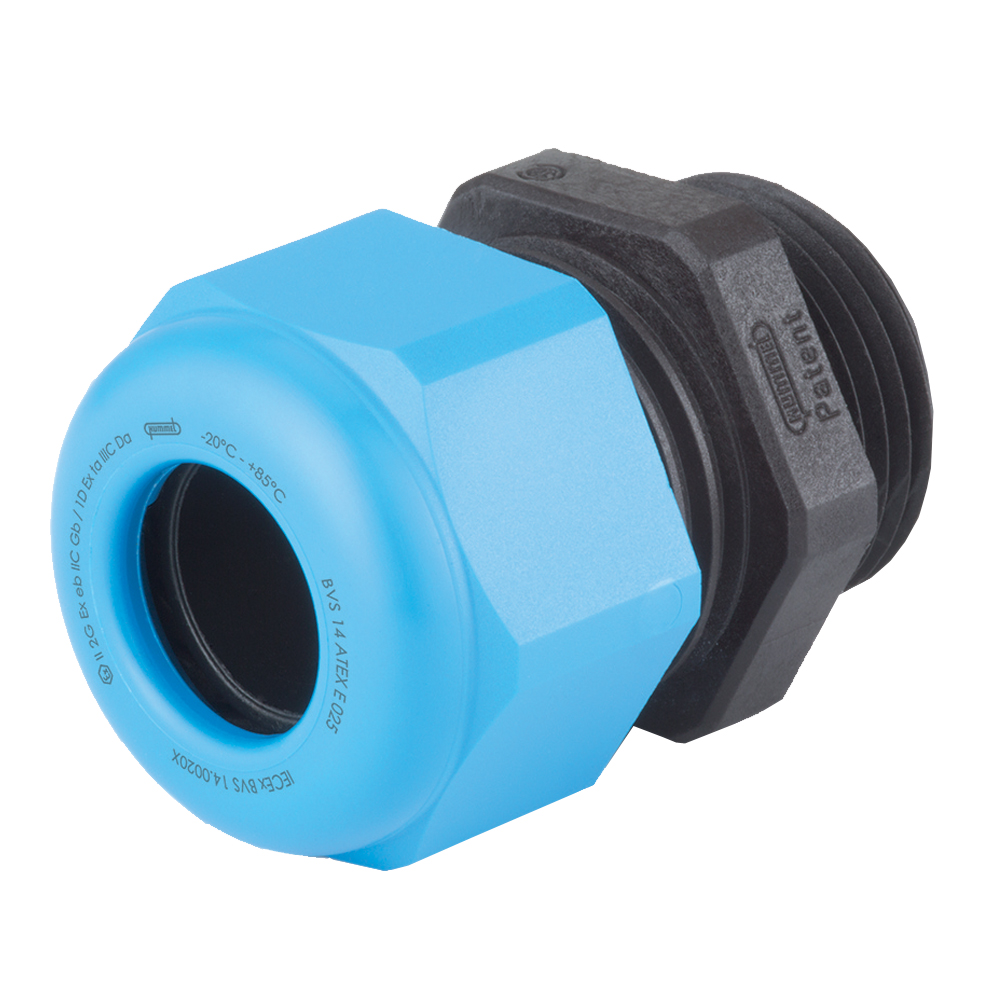

| Black | Blue | Inches (mm) | |
| CD12MA-BXA | CD12MA-BXI | .12" - .26" (3 - 6.5 mm) | M12 x 1.5 |
| CD12MR-BXA | CD12MR-BXI | .08" - .20" (2 - 5 mm) | M12 x 1.5 |
| CD16MA-BXA | CD16MA-BXI | .16" - .31" (4 - 8 mm) | M16 x 1.5 |
| CD16MR-BXA | CD16MR-BXI | .12" - .24" (3 - 6 mm) | M16 x 1.5 |
| CD17MA-BXA | CD17MA-BXI | .20" - .39" (5 - 10 mm) | M16 x 1.5 |
| CD17MR-BXA | CD17MR-BXI | .12" - .28" (3 - 7 mm) | M16 x 1.5 |
| CD20MA-BXA | CD20MA-BXI | .24" - .47" (6 - 12 mm) | M20 x 1.5 |
| CD20MR-BXA | CD20MR-BXI | .20" - .35" (5 - 9 mm) | M20 x 1.5 |
| CD22MA-BXA | CD22MA-BXI | .39" - .55" (10 - 14 mm) | M20 x 1.5 |
| CD22MR-BXA | CD22MR-BXI | .28" - .47" (7 - 12 mm) | M20 x 1.5 |
| CD25MA-BXA | CD25MA-BXI | .51" - .71" (13 - 18 mm) | M25 x 1.5 |
| CD25MR-BXA | CD25MR-BXI | .35" - .63" (9 - 16 mm) | M25 x 1.5 |
| CD32MA-BXA | CD32MA-BXI | .71" - .98" (18 - 25 mm) | M32 x 1.5 |
| CD32MR-BXA | CD32MR-BXI | .51" - .79" (13 - 20 mm) | M32 x 1.5 |
| CD40MA-BXA | CD40MA-BXI | .87" - 1.26" (22 - 32 mm) | M40 x 1.5 |
| CD40MR-BXA | CD40MR-BXI | .79" - 1.02" (20 - 26 mm) | M40 x 1.5 |
| CD50MA-BXA | CD50MA-BXI | 1.26" - 1.50" (32 - 38 mm) | M50 x 1.5 |
| CD50MR-BXA | CD50MR-BXI | .98" - 1.22" (25 - 31 mm) | M50 x 1.5 |
| CD63MA-BXA | CD63MA-BXI | 1.46" - 1.73" (37 - 44 mm) | M63 x 1.5 |
| CD63MR-BXA | CD63MR-BXI | 1.14" - 1.38" (29 - 35 mm) | M63 x 1.5 |
