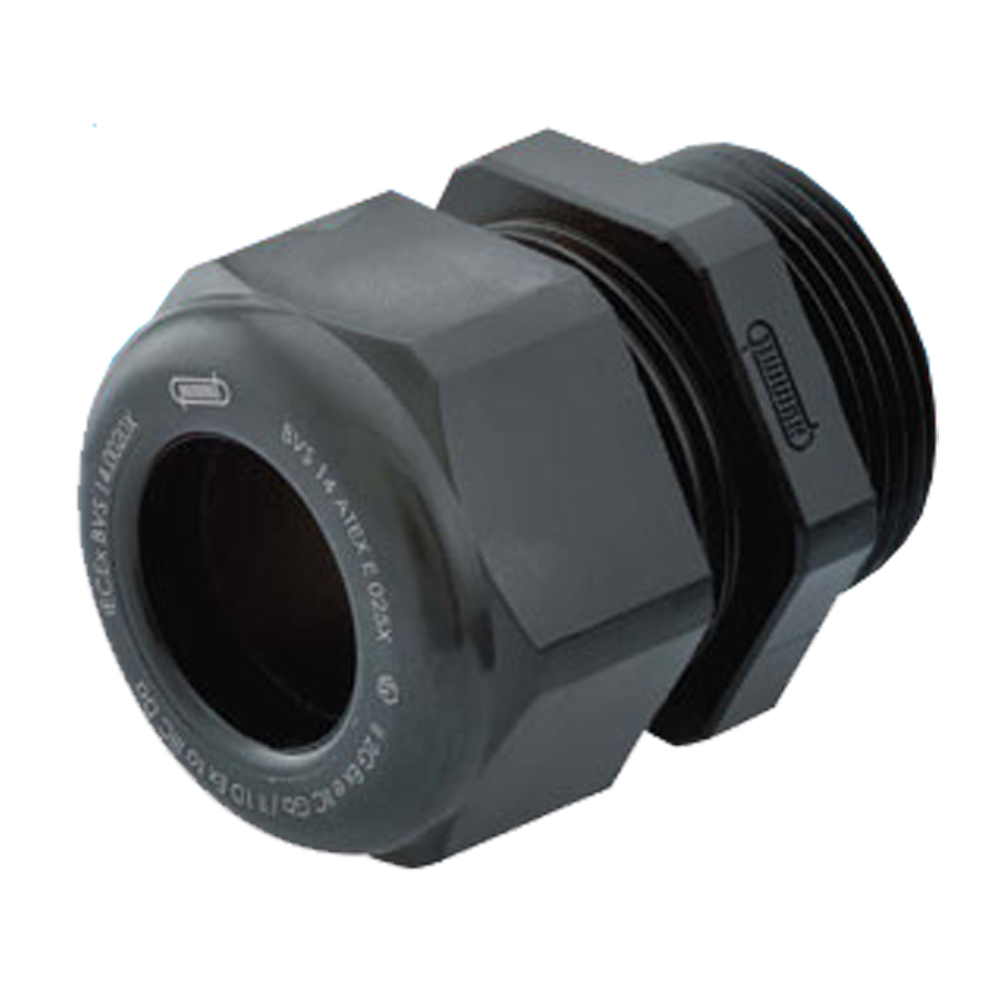

Black Nylon High Impact Strain Relief Fitting

CD36NA-BXA

Nylon BXA Active Relief Fitting 1-1/2" NPT

Thread Type: 1-1/2" NPT

Locking Nut Sold Separately

Sealcon # CD36NA-BXA
Cable Range .87" - 1.26" (22 - 32 mm)
Color Black
Hummel # 1.291.5401.70
Hummel HSK-K-Ex-Active
Material Fiber Reinforced Nylon

Hole Diameter (A)
1.92" (48.7 mm)
Body Length (B)
1.89" (48 mm)
Thread Length (D)
.79" (20 mm)
Wrench Flat (F1/F)
2.09" (53 mm)

Suggested Clearance Hole for Non-Threaded Mounting

Features

The HSK-K-Ex-Active has been developed to meet the stringent requirements of EN 60079-0 : 2012. IECEx Certificate of Conformity: IECEx BVS 14.0020X. This non-metallic solution for non-armored cables is designed for applications in electrical equipment and potentially explosive atmospheres. Machine, apparatus and plant equipment Measuring control and feedback systems Potentially Explosive Atmospheres Electrical Equipment Industrial installations and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical.

Technical Data

Operating Temperature

-20°C to 85°C (-4°F to 185°F)

Pressure Rating: 150 PSIG (10 BAR) NEMA 6 - IP 68
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable
RoHS & Deca BDE Compliant

Downloads

PDF Files


Assembly Instructions
