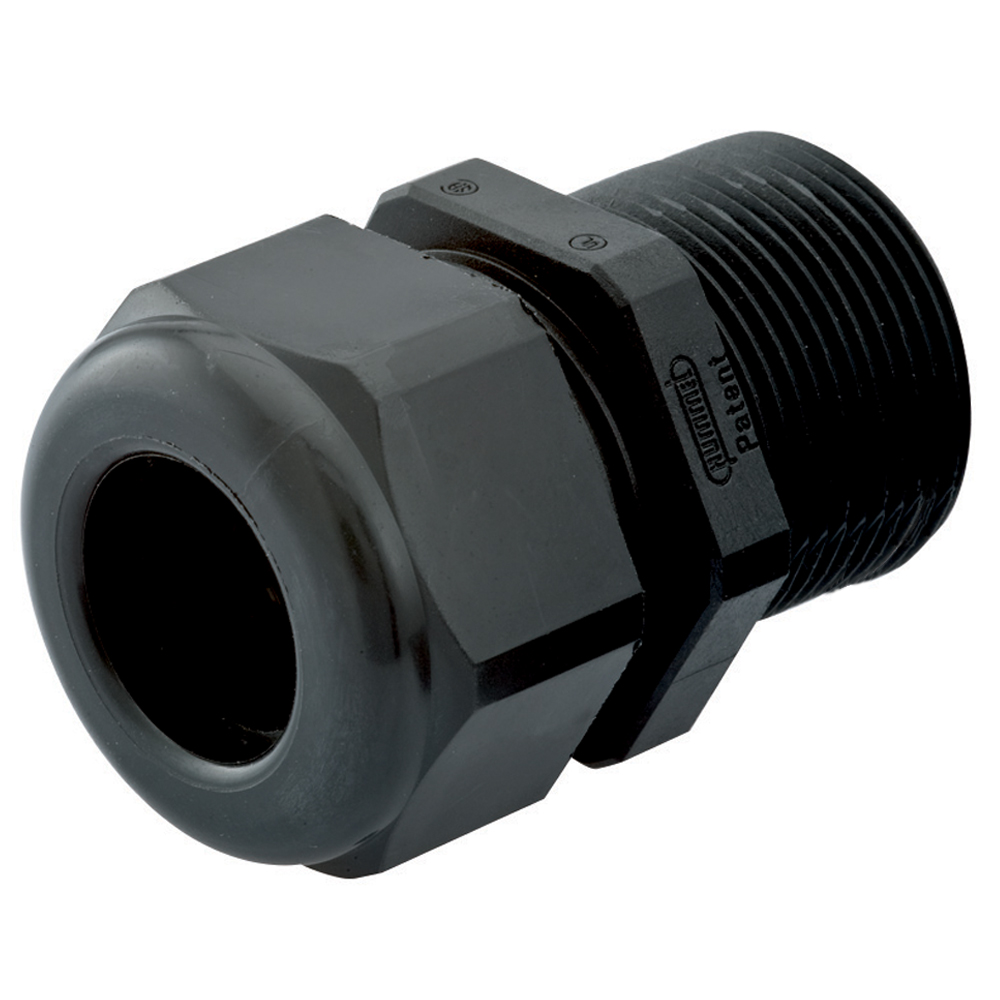

Nylon Elongated Thread Strain Relief Fitting M63 x 1.5
Thread Type: M63 x 1.5
Locking Nut & O-ring Sold Separately
Suggested Clearance Hole for Non-Threaded Mounting
- Liquid Tight - Submersible to 300 ft. - Type Nema 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar)
- Flame protected - V0 Rated according to UL 94Halogen- and Phosphorous free materials
- Safety - Ratchet to prevent Dome from coming loose under vibration
- Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
- Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable - Rugged Construction
- Environmentally compliant - RoHS & Deca BDE
This Nylon Strain Relief (Cable Gland) with M63 x 1.5 Thread will provide your application with a product made of exceptional quality.
Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.
The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
Kinking and chafing of the cable is eliminated with use of the Flex Nut.
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K
- Fittings: Nylon 6/6
- Form Seal: Buna-N
- Optional O-Ring: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
IP 68 – 10 bar / IP 69K within the specific clamping range only with optinal O-Ring (see page 144)
-40°C to 100°C (-40°F to 212°F)
- Black (RAL 9005)
- Gray (RAL 7035)
- Blue (RAL 5012) - upon request
Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals
- Waste Electrical and Electronic Equipment Directive
- Listed Underwriters Laboratories
- Canadian Standard Association
- Registered Underwriters Laboratories
- Certified European Approval
- German Lloyd
- Association of German Electrical Engineers
- V0 UL94 Rated / Approved
