PG Nylon Enlarged Body Strain Relief Connectors | Cord Grip
The Enlarged Body Strain Relief Connectors / Cable Gland / Cord Grip Connectors is great for when your cable diameter Increases but your thread remains the same.
 |
 |
 |
 |
||

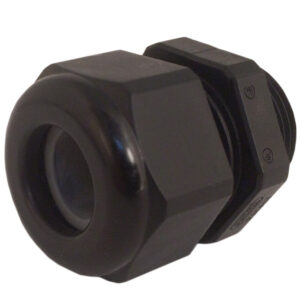

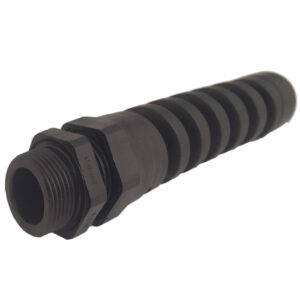

| Dome Fittings | Flex Fittings | ||||
| Black | Grey | Black | Grey | Inches (mm) | |
| Part Numbers | Cable Range | Thread Type | |||
|---|---|---|---|---|---|
| CD07GA-BK | CD07GA-GY | CF07GA-BK | CF07GA-GY | .16" - .31" (4 - 8 mm) | PG 7 / 1/4" NPT |
| CD07GR-BK | CD07GR-GY | CF07GR-BK | CF07GR-GY | .08" - .24" (2 - 6 mm) | PG 7 / 1/4" NPT |
| CD09GA-BK | CD09GA-GY | CF09GA-BK | CF09GA-GY | .20" - .39" (5 - 10 mm) | PG 9 |
| CD09GR-BK | CD09GR-GY | CF09GR-BK | CF09GR-GY | .12" - .28" (3 - 7 mm) | PG 9 |
| CD11GA-BK | CD11GA-GY | CF11GA-BK | CF11GA-GY | .24" - .47" (6 - 12 mm) | PG 11 |
| CD11GR-BK | CD11GR-GY | CF11GR-BK | CF11GR-GY | .20" - .35" (5 - 9 mm) | PG 11 |
| CD13GA-BK | CD13GA-GY | CF13GA-BK | CF13GA-GY | .39" - .55" (10 - 14 mm) | PG 13 / 13.5 |
| CD13GR-BK | CD13GR-GY | CF13GR-BK | CF13GR-GY | .28" - .47" (7 - 12 mm) | PG 13 / 13.5 |
| CD16GA-BK | CD16GA-GY | CF16GA-BK | CF16GA-GY | .51" - .71" (13 - 18 mm) | PG 16 |
| CD16GR-BK | CD16GR-GY | CF16GR-BK | CF16GR-GY | .35" - .63" (9 - 16 mm) | PG 16 |
