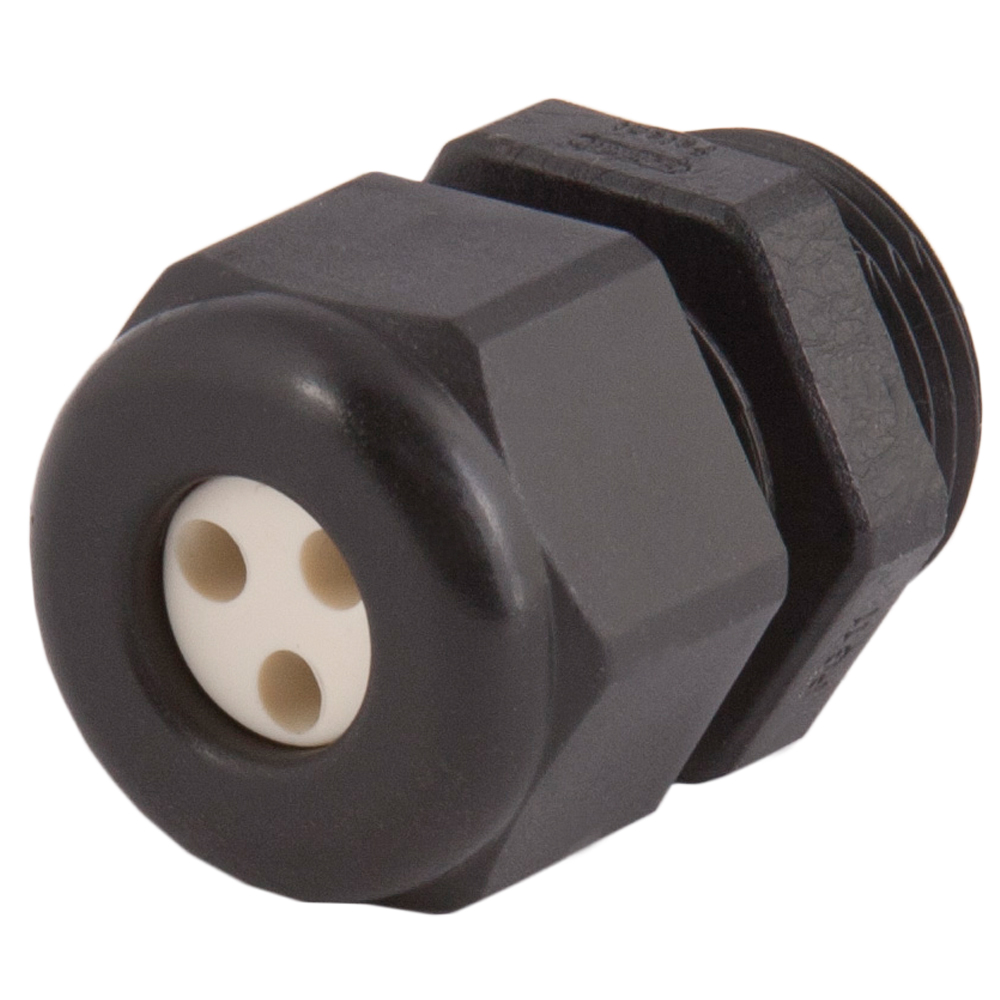

Black Nylon Standard Strain Relief Fitting M16 x 1.5
Thread Type: M16 x 1.5
Locking Nut & O-Ring Sold Separately
Sealcon # CD17M4-BK
No. of Holes 3
Diameter of Holes .06" (1.5 mm)
Insert Only 1.089.1103.19
Hummel # 1.598.1603.51
Body Length (B)
Thread Length (D)
This Nylon Strain Relief (Cable Gland) with M16 x 1.5 Thread will provide your application with a product made of exceptional quality
The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
- Fittings: Nylon 6/6
- Form Seal:
- Optional O-Ring: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
- Black (RAL 9005)
- Gray (RAL 7035)
- Blue (RAL 5012) - upon request
Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.
UL F1 UV Stable Rating for outdoor applications (Black Nylon version only).
*Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
