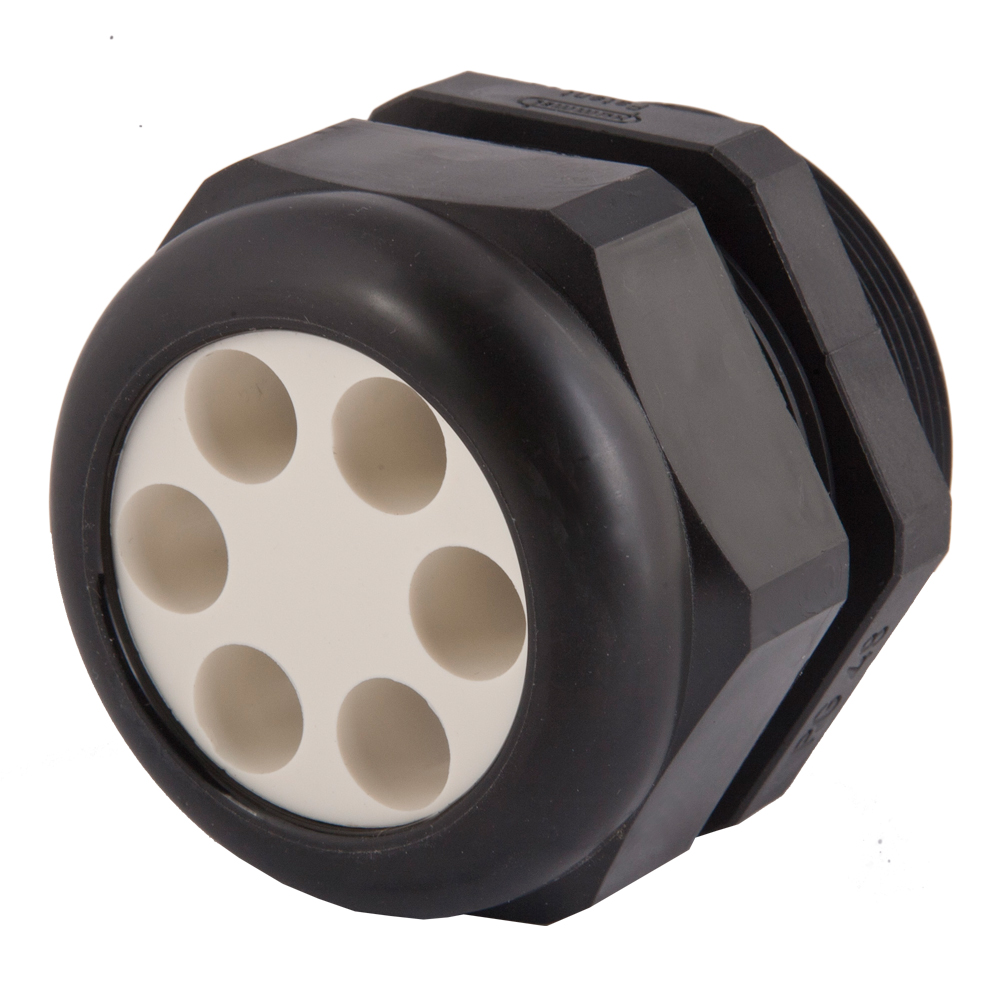

M40 x 1.5 Black Nylon Standard Dome Multi-Hole (6 Holes) Cable Gland | Cord Grip | Strain Relief CD40M3-BK

Sealcon #: CD40M3-BK
Color: Black
Material: Nylon
Number of Holes: 6
Diameter of Holes: 0.31" (8 mm)
Insert Part Number: 1.089.3602.19
Hummel #: 1.597.4002.51

Locking Nut & O-Ring Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
  • Features

    • Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
    • Safety – Ratchet to prevent Dome from coming loose under vibration
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This Nylon Strain Relief (Cable Gland) with M40 x 1.5 Thread will provide your application with a product made of exceptional quality

    The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.



  • Materials
    • Fittings: Nylon 6/6
    • Optional ORing: Buna-N, FPM or Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Available Colors
    Black (RAL 9005);Gray (RAL 7035);Blue (RAL 5012) - upon request;

    Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.

    UL F1 UV Stable Rating for outdoor applications (Black Nylon version only).

    *Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
